Bypass Oil Cleaner Filter Injection Molding Machine Filter

(1)Introduction

The BU100, BU50, BU30 series are highly flexible bypass oil filters. Their core function is to filter oil (such as hydraulic oil and lubricating oil) in the hydraulic systems/lubrication systems of various equipment through a bypass circuit, efficiently removing metal chips, colloids, and impurity particles. This prevents valve core jamming and component wear, while extending the service life of the equipment and the oil change interval.

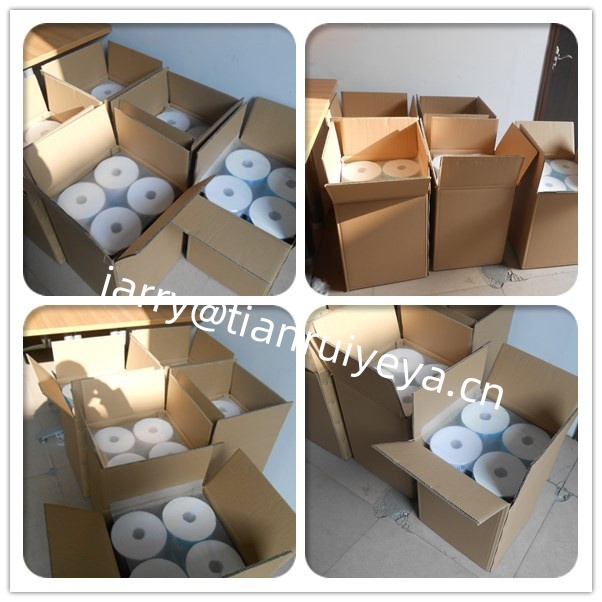

B100 B50 B32

(2)Product features

  • Adopts a bypass filtration structure, which does not affect the flow rate of the main oil circuit and is suitable for the continuous operation needs of equipment;
  • Stable filtration precision (1-25μm for regular use), capable of accurately trapping tiny impurities in oil;
  • The housing is mostly made of metal, featuring high pressure resistance (compatible with the hydraulic system pressure of most industrial equipment), impact resistance, and flexible installation methods;
  • The filter element is easy to replace, resulting in low maintenance costs
(3)Model description
The following table details the key parameters of different models, including oil flow, pressure and matching filter element model:
BU-100 BU-50 BU-30
Industry oil Industry oil Industry oil
NAS 5-7 Grade NAS 5-7 Grade NAS 5-7 Grade
10-210 Bar 10-210 Bar 10-210 Bar
3L / min 2L / min 1.5L / min
0-80℃ 0-80℃ 0-80℃
9-180 cSt 9-180 cSt 9-180 cSt
Inlet: Rc¼, Outlet: Rc3/8 Inlet: Rc¼, Outlet: Rc3/8 Inlet: Rc¼, Outlet: Rc¼
0-10 Bar 0-10 Bar 0-10 Bar
5.5 Bar  5.5 Bar  5.5 Bar
200
AC 380V three-phase,AC 220C two-phase
B100 B50 B30 B32
180 145 105 105
38 38 38 25
114 114 114 114
NAS 5-7 Grade

(4)Application Fields

It is suitable for the hydraulic lubrication circuits of various horizontal/vertical injection molding machines, especially for plastic part molding and mold processing scenarios with high load and easy oil contamination. Relying on the flexibility of the bypass structure, it can also be widely adapted to other industrial equipment:

  • Machine tool equipment: Hydraulic lubrication systems of CNC machine tools and machining centers, for example;
  • Heavy machinery: Hydraulic circuits of hydraulic excavators and loaders, for example;
  • Light industry equipment: Lubrication systems of rubber vulcanizing machines and printing machines, for example;
  • General industry: Various hydraulic/lubrication circuits that require continuous oil filtration to prevent impurities from damaging components.

(5)Core Advantages

  • High flexibility: Not only suitable for injection molding machines, but also compatible with oil circuits of various industrial equipment, with a wide range of application scenarios;
  • Reliable operation: The bypass design does not interrupt the operation of the main equipment, and the filter element can be replaced online, ensuring continuous production;
  • Cost optimization: Extends the service life of oil (reduces oil change frequency by 30%-50%), and lowers equipment maintenance and consumable costs;
  • Strong adaptability: Can match corresponding models according to the oil circuit pressure and flow requirements of different equipment, with convenient installation.

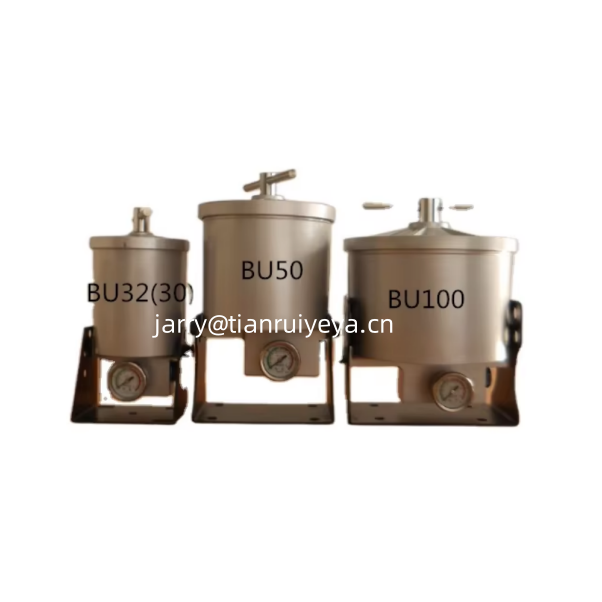

bypass oil clean filter
We can also customize the design and production according to the customer’s requirements

Our company, Xinxiang Tianrui Hydraulic Equipment Co., LTD., offers a wide range of filter products. We can customize production according to customer requirements.
【For more details, please contact us at jarry@tianruiyeya.cn】
