(1)Introduction
The RFA (LHN) filter is suitable for the fine filtration of return oil in hydraulic systems. It can effectively filter out contaminants such as metal particles caused by component wear and rubber impurities shed from aging seals within the system, ensuring the cleanliness of the oil flowing back to the oil tank.

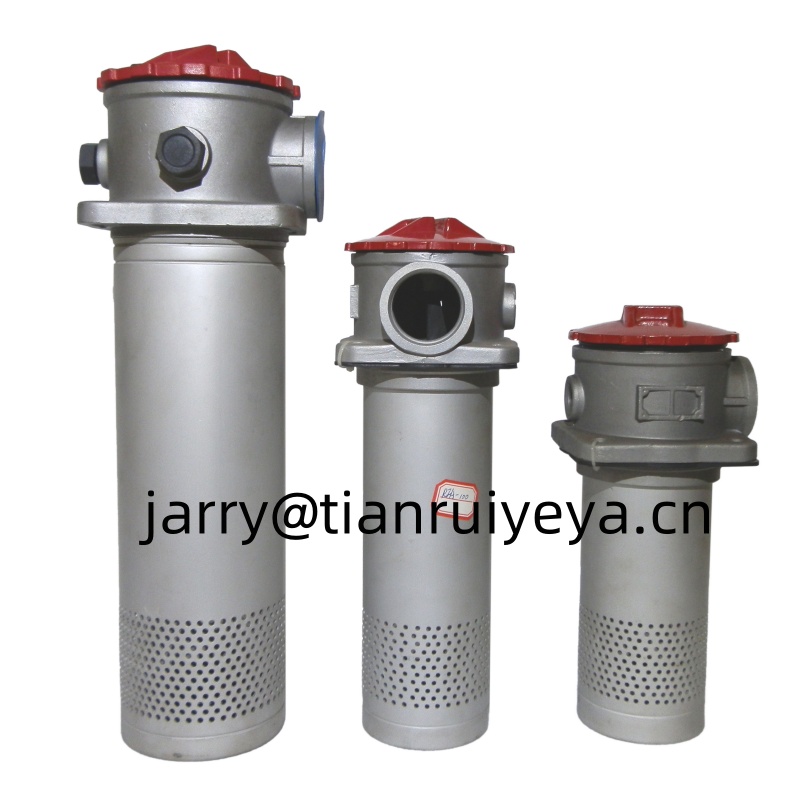

The RFA filter is installed on the top of the oil tank, with the cylinder part immersed in the interior of the oil tank. It is equipped with components such as a bypass valve, diffuser, and filter element contamination and clogging transmitter. It features a compact structure, convenient installation, large oil flow capacity, low pressure loss, and easy filter element replacement.
(2)Product features
1. Easy to install and simplifies the system pipeline
The RFA filter is directly installed on the oil tank cover plate and is suitable for various oil tank filtration systems. The cylinder is immersed in the oil tank, and the oil inlet is equipped with pipe and flange connections, simplifying the system pipeline and facilitating disassembly and assembly.
2. It has a large oil flow capacity and high filtration accuracy
RFA adopts glass fiber filter material, with a precision ranging from 1 to 30 microns. The pleated filter element has the advantages of large oil flow capacity and large dirt-holding capacity
| model | flow(L/min) | filter rating(μm) | dia(mm) | weight(Kg) | filter element model |
| RFA-25x*L-c Y | 25 | 1 3 5 10 20 30 |
15 | 0.85 | FAX-25x* |
| RFA-40x*L-c Y | 40 | 20 | 0.9 | FAX-40x* | |
| RFA-63x*L-c Y | 63 | 25 | 1.5 | FAX-63x* | |
| RFA-100x*L-c Y | 100 | 32 | 1.7 | FAX-100x* | |
| RFA-160x*L-c Y | 160 | 40 | 2.7 | FAX-160x* | |
| RFA-250x*F-c Y | 250 | 50 | 4.35 | FAX-250x* | |
| RFA-400x*F-c Y | 400 | 65 | 6.15 | FAX-400x* | |
| RFA-630x*F-c Y | 630 | 90 | 8.2 | FAX-630x* | |
| RFA-800x*F-c Y | 800 | 90 | 8.9 | FAX-800x* | |
| RFA-1000x*F-c Y | 1000 | 90 | 9.96 | FAX-1000x* |
