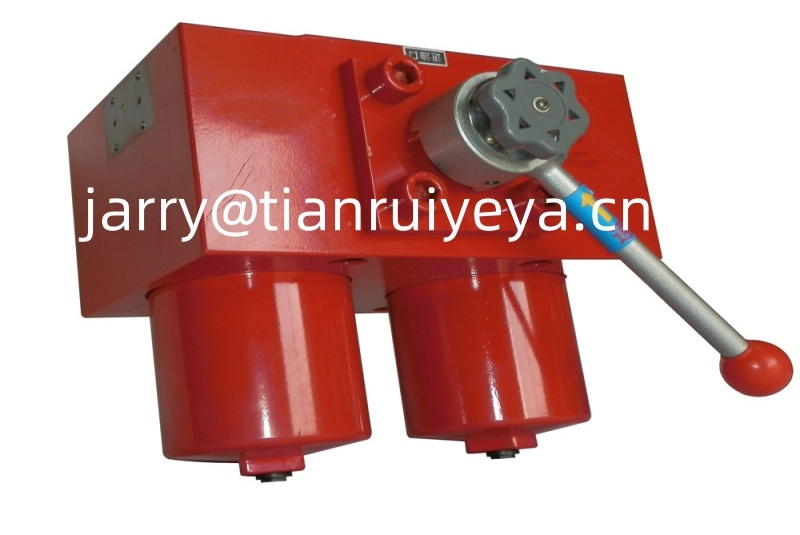

The SGF high-pressure duplex filter boasts a maximum working pressure of 32 MPa, adopts flange connection, is suitable for various operating environments, and can also serve as a replacement for multiple filter models, such as HYDAC’s DFDK series duplex filters.
(1)Introduction
This filter is installed in the high-pressure pipeline at the oil pump outlet to protect control components and actuators. Especially in automatic control systems, it can effectively prevent contamination, avoid malfunctions, and extend the service life of high-precision servo components and plunger components.
(2)Filter sheet
| MODEL |
FLOW (L/min) |
FILTER RATING(μm) |
DIA(mm) |
Connection method |
FILTER ELEMENT MODEL |
|
SGF-H30×*C |
30 |
3 |
20 |
FLANGE |
PLFX-30×* |
|
SGF-H60×*C |
60 |
TD0060D*BN3HC |
|||
|
SGF-H110×*C |
110 |
TD0110D*BN3HC |
|||
|
SGF-H160×*C |
160 |
32 |
TD0160D*BN3HC |
||
|
SGF-H240×*C |
240 |
TD0240D*BN3HC |
|||
|
SGF-H330×*C |
330 |
50
|
TD0330D*BN3HC |
||
|
SGF-H500×*C |
500 |
TD0500D*BN3HC |
|||
|
SGF-H660×*C |
660 |
TD0660D*BN3HC |
We offer a wide range of alternative filtration products with numerous models and support customization. Many models that have been discontinued on the market can still be provided by us
