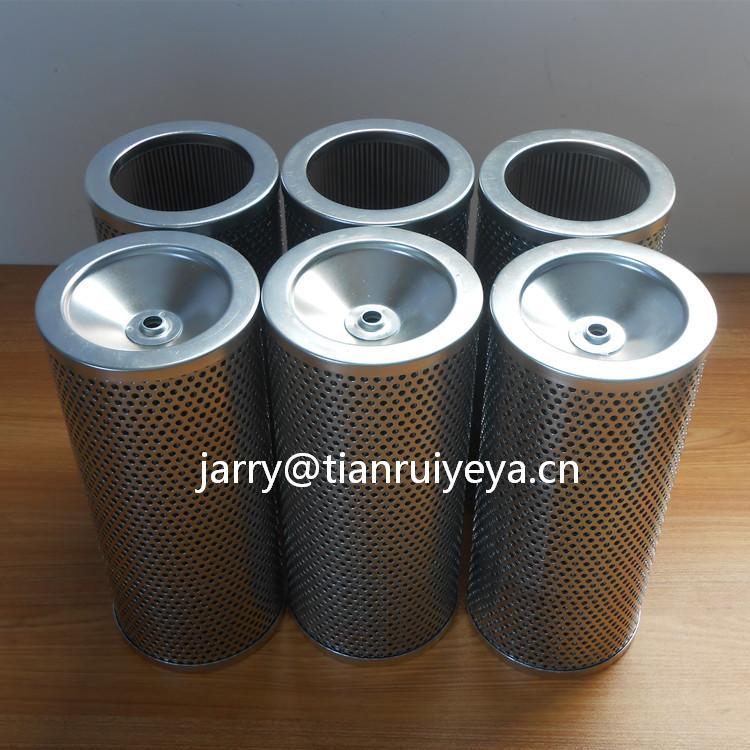

From Insdie to Out Return Oil Filter Element -TR

Return line filter elements feature a core structure of outer skeleton + top U-shaped cover + pleated filter layer, combined with three types of filter media including glass fiber, filter paper, and metal mesh. They can accurately meet the filtration requirements of various industrial environments. As a cost-effective alternative to Parker LEIF Series, FILTREC R7 Series, and MP Filtri MR Series, these filter elements come in a full range of sizes and support custom non-standard designs, ensure the stable operation of hydraulic systems.

I. Core Structure & Filter Media Advantages

1. Outer Skeleton + Top U-shaped Cover: Durable & Easy to Maintain

• Outer Skeleton for Support and Protection: The metal outer skeleton is designed for the filter element’s inside-out flow path, providing strong radial support for the filter media to effectively prevent expansion and tearing caused by hydraulic pressure. It also resists oil flow impact and installation collision, protecting vulnerable filter media such as glass fiber and avoiding secondary pollution.

• U-shaped Cover with Multi-function Integration: It fits tightly with the upper chamber of the filter to form a sealed cavity, forcing oil to enter from the center of the filter element and preventing unfiltered oil from bypassing. Built-in low-lag bypass valve automatically opens when the filter element is clogged to ensure uninterrupted return oil system operation. The U-shaped structure is easy to grip, enabling effortless installation and removal of the tank-mounted filter element.

2. Pleated Filter Layer + Multi-media Options: High-efficiency Filtration for All Working Conditions

• Pleated Filter Layer for Enhanced Performance: Compared with traditional flat filter media, the pleated structure greatly increases the effective filtration area, improves dirt-holding capacity and service life of the filter element, while reducing filtration resistance and system energy consumption.

• Three Filter Media for Precise Matching
  • Glass Fiber Media: Boasts high filtration precision, meets the high-precision cleanliness requirements of hydraulic systems, and is suitable for precision equipment working conditions.
  • Filter Paper Media: A cost-effective choice for general industrial hydraulic oil filtration scenarios.
  • Metal Mesh Media: Resistant to high temperature and high pressure, washable and reusable, ideal for harsh working conditions and high-viscosity medium filtration.

II. Recommended Popular Alternative Models

III. Replacement & Customization Capabilities – Meet Personalized Needs

1. Direct Replacement for Seamless Adaptation: Fully match the dimensions, interfaces and filtration precision of the original filter elements from brands.They can be directly installed without equipment modification, significantly cutting down procurement costs.

1. Non-standard Customization On Demand: Tailor-made filter element solutions are available based on customers’ requirements for equipment installation dimensions, filtration precision, flow rate and medium characteristics, meeting the personalized needs of special working conditions.
