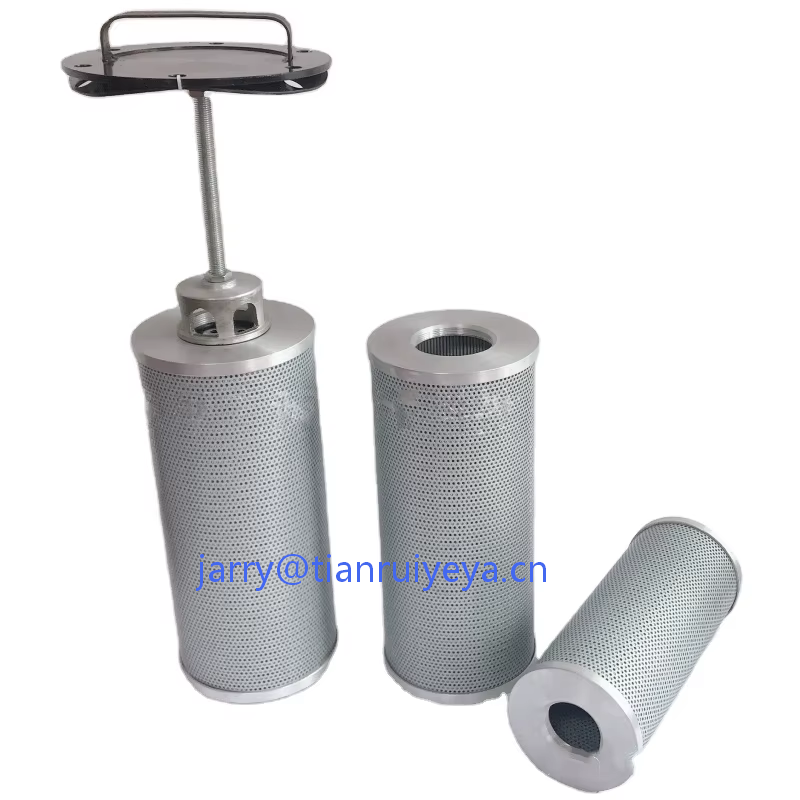

XNL TANK MOUNTED RETURN LINE FILTER SERIES NLX
The NLX tank internal oil return filter element is installed in the hydraulic system return port to filter out metal particles and rubbery contaminants generated by the wear of the components in the hydraulic system, so that the oil flowing back to the fuel tank is kept clean.
Technical date
| Model | Flow rate L/min |
Filtr. (μm) |
Dia.(mm) |
Weight (Kg) |
Model of element |
| XNL-25×*-C/Y |
25 |
1 |
20 |
1.2 |
NLX-25×* |
| XNL -40×*-C/Y |
40 |
1.5 |
NLX -40×* |
||
| XNL -63×*-C/Y |
63 |
32 |
2.3 |
NLX -63×* |
|
| XNL-100×*-C/Y |
100 |
2.5 |
NLX-100×* |
||
| XNL -160×*-C/Y |
160 |
50 |
4.6 |
NLX-160×* |
|
| XNL -250×*-C/Y |
250 |
5.1 |
NLX-250×* |
||
| XNL -400×*-C/Y |
400 |
80 |
10.1 |
NLX-400×* |
|
| XNL -630×*-C/Y |
630 |
10.8 |
NLX-630×* |
||
| XNL -800×*-C/Y |
800 |
90 |
14.2 |
NLX-800×* |
|
| XNL -1000×*-C/Y |
1000 |
14.9 |
NLX-1000×* |
||
| Note:*is filtration accuracy, If the medium is water -glycol, flow rate is 160L/min,filtration accuracy is 10μm,with CYB-Ⅰindicator, the model of this filter is XNL·BH-160×10Y, the model of element is NLX·BH-160×10. | |||||
NLX-25×1 NLX-25×3 NLX-25×5 NLX-25×10 NLX-25×20 NLX-25×30
NLX-40×1 NLX-40×3 NLX-40×5 NLX-40×10 NLX-40×20 NLX-40×30
NLX-63×1 NLX-63×3 NLX-63×5 NLX-63×10 NLX-63×20 NLX-63×30
NLX-100×1 NLX-100×3 NLX-100×5 NLX-100×10 NLX-100×20 NLX-100×30
NLX-160×1 NLX-160×3 NLX-160×5 NLX-160×10 NLX-160×20 NLX-160×30
NLX-250×1 NLX-250×3 NLX-250×5 NLX-250×10 NLX-250×20 NLX-250×30
NLX-400×1 NLX-400×3 NLX-400×5 NLX-400×10 NLX-400×20 NLX-400×30
NLX-630×1 NLX-630×3 NLX-630×5 NLX-630×10 NLX-630×20 NLX-630×30
NLX-800×1 NLX-800×3 NLX-800×5 NLX-800×10 NLX-800×20 NLX-800×30
NLX-1000×1 NLX-1000×3 NLX-1000×5 NLX-1000×10 NLX-1000×20 NLX-1000×30
Contact Information
For filter element replacement selection and non-standard customization needs, please feel free to contact us via:Email: jarry@tianruiyeya.cn
