Popular 420 Bar High-pressure Pipeline Filter PHA-TR FILTER

Don’t know which pipeline filter to choose for installation on the high-pressure pipeline? Then let’s take a look at our best-selling high-pressure pipeline filter PHA

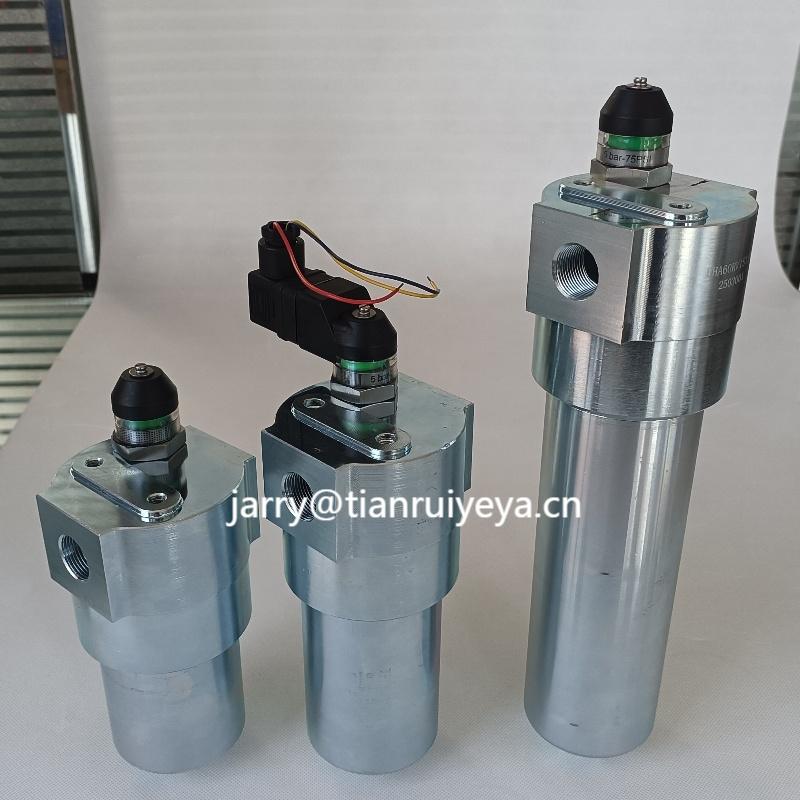

high pressure filter housing

(1)Performance and Application

It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.Its configuration and connect form convenient for other hydraulic pressure element integration assemblage.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

Filter vessel is made of steel-stick, and has nice looking figure.



(2)Technical parameters

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max): 42MPa                           Operating temperature:- 25℃~110℃

Indicating pressure drop: 0. 5MPa                           By-pass valve unlocking pressure: 0.6MPa

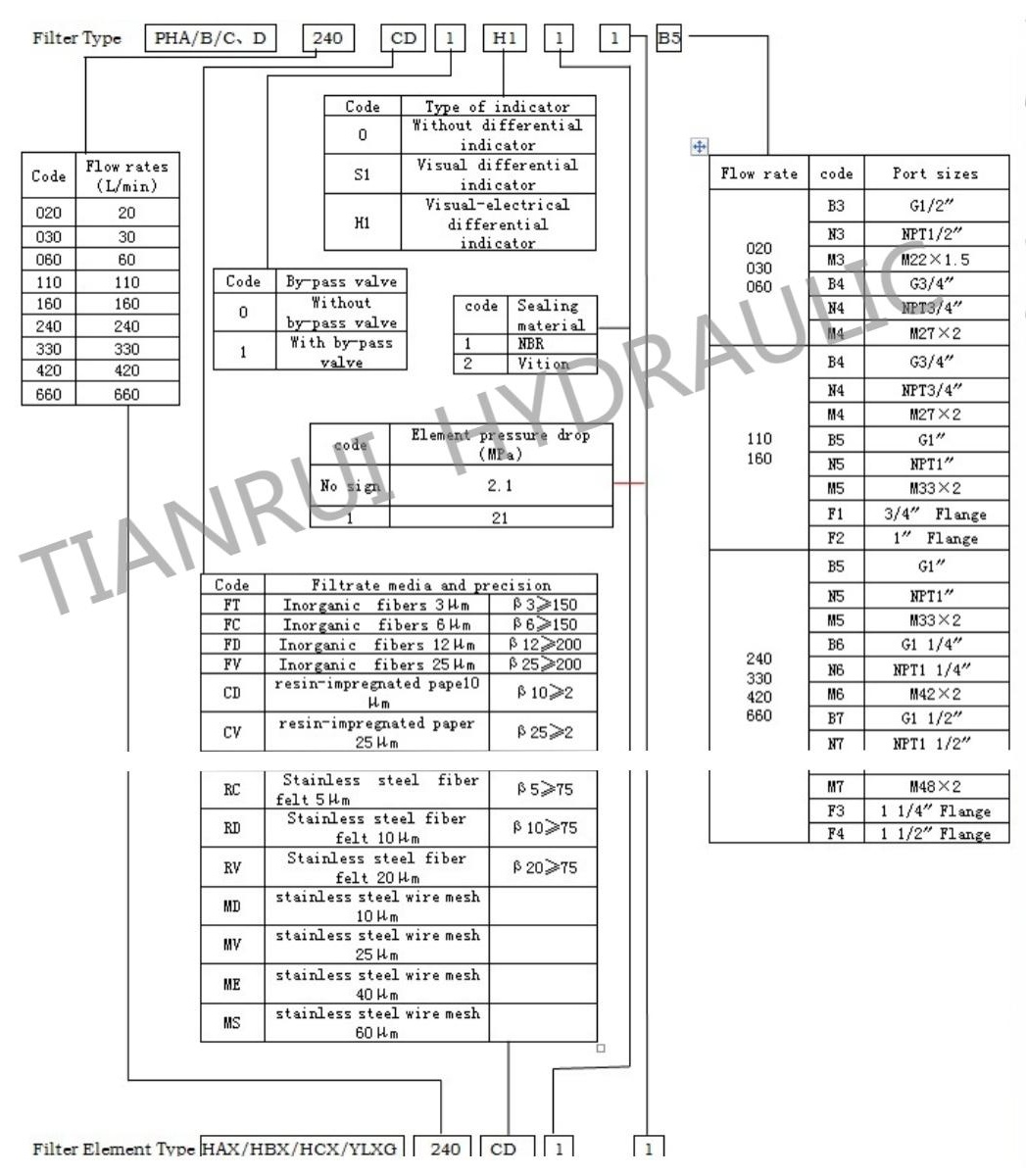

(3)System type spectrum

pha


This high-pressure pipeline filter can withstand a pressure of 42MPa. Its shell is made of carbon steel or stainless steel, which is pressure-resistant, heat-resistant and corrosion-resistant. It is easy to use and convenient to replace the filter element. There are many sizes available. The connection method is the internal thread standard, including G thread, NPT thread, etc. Customization of various thread connections is supported
【For more details, please contact us at jarry@tianruiyeya.cn】
