Maintaining stable oil cleanliness is essential to extend the service life of pumps, valves and actuators in hydraulic power systems. The RFB series direct return magnetic filter is a widely adopted tank-mounted return filtration solution for industrial hydraulic circuits.

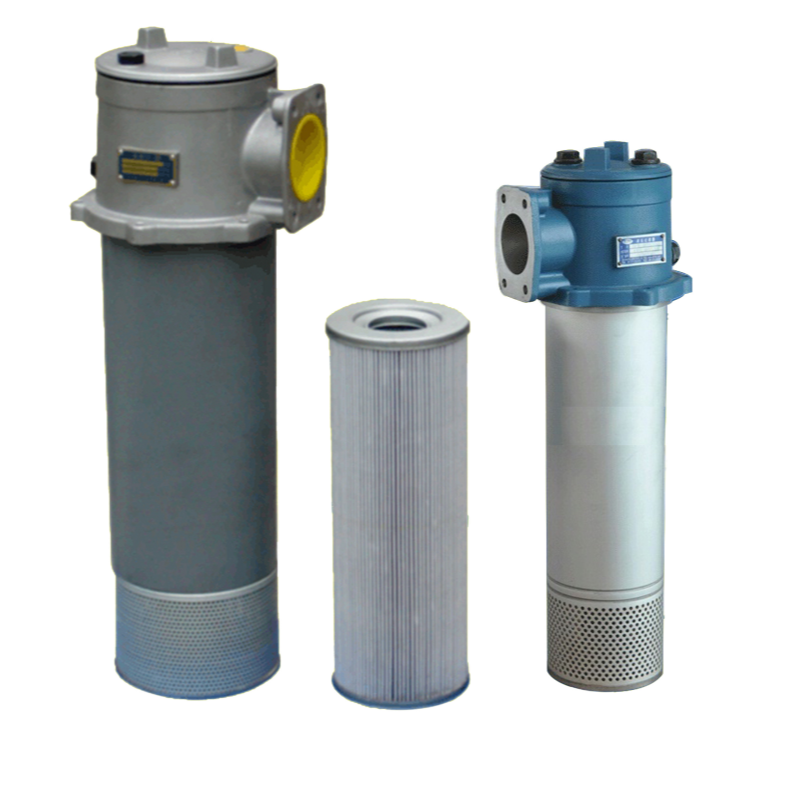

Different from common inline filters, the RFB filter assembly is designed for direct installation on the top, side or bottom of the hydraulic oil tank. The filter head stays outside the tank while the filter cartridge body is submerged into oil, which greatly simplifies pipeline layout and saves installation space.
| MODEL | FLOW L/min | RATING (μm) | DIA(mm) | WEIGHT(Kg) | ELEMENT MODEL |
|---|---|---|---|---|---|
| RFB(PZU)-25×*-C/Y | 25 | 1, 3, 5, 10, 20, 30 | 50 | 4.6 | FBX(TZ)-25×* |
| RFB(PZU)-40×*-C/Y | 40 | 4.8 | FBX(TZ)-40×* | ||
| RFB(PZU)-63×*-C/Y | 63 | 5.3 | FBX(TZ)-63×* | ||
| RFB(PZU)-100×*-C/Y | 100 | 6 | FBX(TZ)-100×* | ||
| RFB(PZU)-160×*-C/Y | 160 | 6.7 | FBX(TZ)-160×* | ||
| RFB(PZU)-250×*-C/Y | 250 | 80 | 12.3 | FBX(TZ)-250×* | |
| RFB(PZU)-400×*-C/Y | 400 | 14.7 | FBX(TZ)-400×* | ||
| RFB(PZU)-630×*-C/Y | 630 | 17.3 | FBX(TZ)-630×* | ||
| RFB(PZU)-800×*-C/Y | 800 | 18.6 | FBX(TZ)-800×* | ||
| RFB(PZU)-1000×*-C/Y | 1000 | 21.3 | FBX(TZ)-1000×* | ||
| RFB(PZU)-1300×*-C/Y | 1300 | - | FBX(TZ)-1300×* | ||
| NOTE: *For filtration accuracy, if the medium used is water and ethylene glycol, with a nominal flow rate of 160 l/min and a filtration accuracy of 10 μm, and equipped with a CYB-I type signaler, then the filter model is RFB·BH-160X10Y, and the filter element model is FBX·BH-160X10. | |||||
Magnetic Filtration
One standout feature of the RFB return filter is its built-in permanent magnet. It captures ferromagnetic wear particles above 1μm generated from metal component friction before the oil passes through the FBX filter element.
Self-Sealing Valve
The self-sealing check valve is integrated inside the filter housing. When you replace the FBX filter element, the valve closes automatically to stop oil draining out of the reservoir.
Tianrui Hydraulic supplies complete RFB filter assemblies as well as interchangeable FBX replacement filter elements. Our FBX filter elements adopt high-performance glass fiber media, featuring high dirt holding capacity, stable beta ratio and low initial pressure drop. Multiple micron grades including 1μm, 3μm, 5μm, 10μm, 20μm and 30μm are available to meet different ISO 4406 cleanliness requirements.
RFB magnetic return filters are commonly used in engineering machinery, metallurgical equipment, injection molding machines, mining hydraulic stations and power auxiliary systems. We can customize filter size, clogging indicator (visual or electric differential pressure indicator) and seal materials (NBR, EPDM, Viton) based on your working condition.
Need technical support or a quotation?
If you are looking for replacement FBX filter elements or full RFB filter units, send your model number or technical drawing to us: 【jarry@tianruiyeya.cn】
