XNL Series in-tank Return Filter-TR

Ⅰ Product Overview

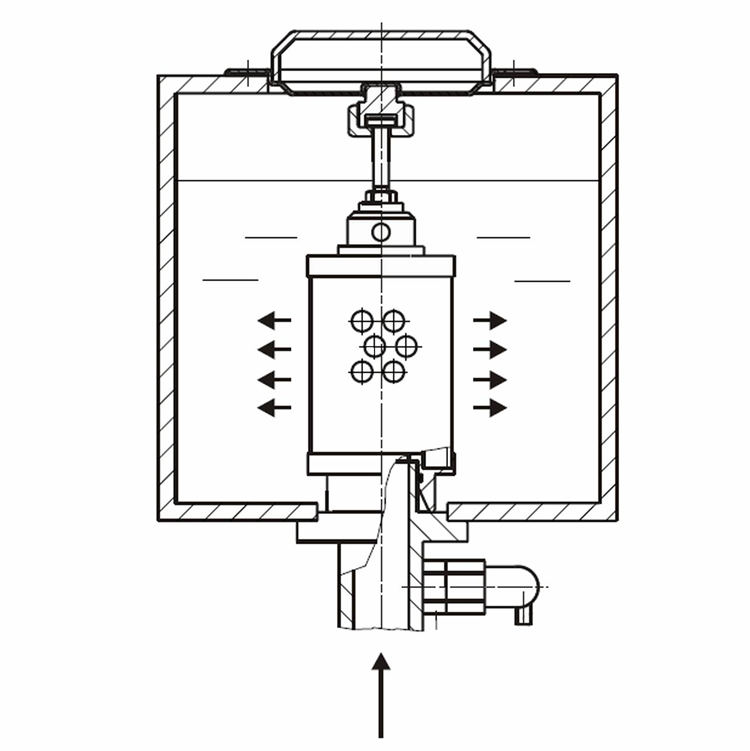

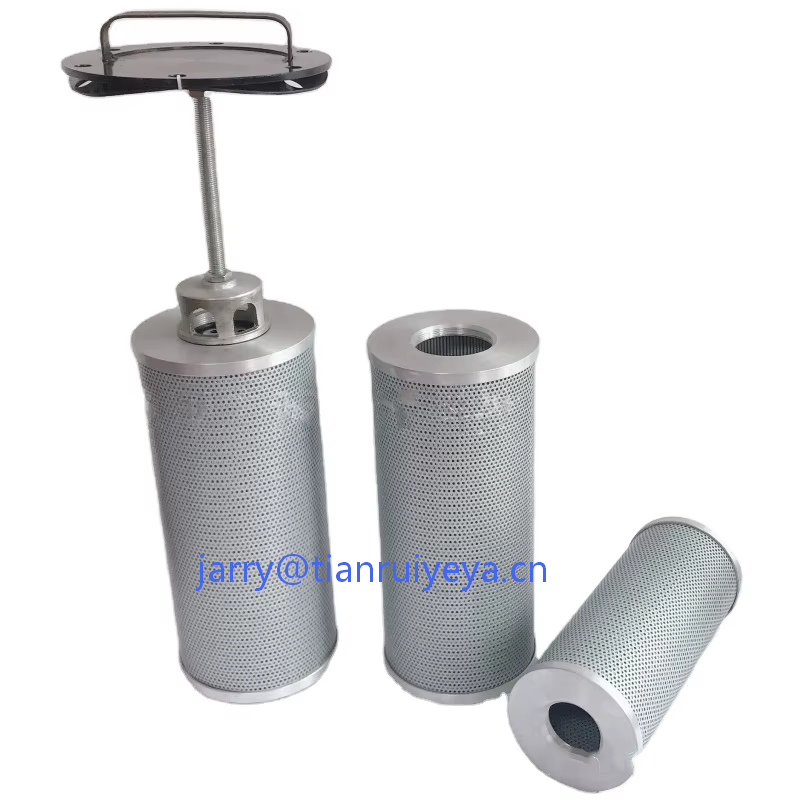

XNL series is in-tank self-sealing magnetic return filter, a standard style hydraulic return filtration solution. The filter housing is mounted on the top cover of hydraulic oil tank, matched with NLX series filter element. It performs fine filtration on returning hydraulic oil, captures solid contaminants generated by component wear, keeps oil clean, protects hydraulic pumps, valves and cylinders, and extends service life of hydraulic oil and equipment. Built-in magnet can adsorb ferrous metal particles.

Ⅱ Core Function & Working Principle

  • [1] Return-line fine filtration: intercept metal particles, rubber debris and dust before oil flows back to tank;
  • [2] Self-sealing valve: automatically seals oil passage while replacing NLX element, no oil spill, no oil draining required for maintenance;
  • [3] Differential pressure indicator: sends alarm signal at 0.35MPa pressure drop, remind element replacement;
  • [4] Bypass safety valve: opens at 0.4MPa to guarantee oil supply if the element is blocked and not replaced timely;
  • [5] Magnetic capture: built-in magnet rod captures ferrous contaminants, reduce element burden and extend dirt holding life.

Ⅲ Application Scenarios

✅ Construction machinery: excavator, loader, road roller, truck crane hydraulic system;
✅ Machine tools: CNC lathe, machining center, hydraulic machine;
✅ Plastic & rubber machines: injection molding machine, extruder;
✅ Metallurgy & mining: steel mill hydraulic station, mining equipment;
✅ Wind power, marine equipment, agricultural machinery and general hydraulic lubrication systems.

Ⅳ Model, Flow & Filtration Rating

Model Flow rate L/min Filtr. (μm) Dia.(mm) Weight (Kg) Model of element
XNL-25×*-C/Y 25 1, 3, 5, 10, 20, 30 20 1.2 NLX-25×*
XNL -40×*-C/Y 40 20 1.5 NLX -40×*
XNL -63×*-C/Y 63 32 2.3 NLX -63×*
XNL-100×*-C/Y 100 32 2.5 NLX-100×*
XNL -160×*-C/Y 160 50 4.6 NLX-160×*
XNL -250×*-C/Y 250 50 5.1 NLX-250×*
XNL -400×*-C/Y 400 80 10.1 NLX-400×*
XNL -630×*-C/Y 630 80 10.8 NLX-630×*
XNL -800×*-C/Y 800 90 14.2 NLX-800×*
XNL -1000×*-C/Y 1000 90 14.9 NLX-1000×*
Note: *is filtration accuracy, If the medium is water -glycol, flow rate is 160L/min,filtration accuracy is 10μm,with CYB-Ⅰindicator, the model of this filter is XNL·BH-160×10Y, the model of element is NLX·BH-160×10.
