In the fields of industrial filtration, fluid transportation and equipment protection, stainless steel filter elements are the most widely used and cost-effective basic filtration accessories. Among them, conical, semicircular and cylindrical filters are widely applied in hydraulic, water treatment, chemical, mechanical processing, food fluid and other working conditions due to their corrosion resistance, durability, large flow rate, anti-clogging and reusable advantages.
Many users are confused about how to choose among three shapes of stainless steel filters and which mesh size suits specific working conditions. This article elaborates on the core functions, mesh differences, application scenarios and differentiated advantages of the three types of stainless steel filters, helping industrial enterprises select products accurately and match equipment requirements quickly.
Core Knowledge: Shape & Mesh Determine Filtration Performance
Industrial stainless steel filter elements are mainly divided into three shapes: conical, semicircular and cylindrical. Different shapes adapt to different installation structures and filtration scenarios, and the filter mesh size directly determines filtration accuracy, flow rate and impurity interception size. Most selection errors are caused by only focusing on shape while ignoring mesh size, resulting in rapid clogging, substandard filtration and insufficient flow.
General industry rule: The smaller the mesh number, the larger the hole and the better the flow, only intercepting large impurities; the larger the mesh number, the denser the mesh and the higher the filtration accuracy, with relatively higher fluid resistance. This article classifies common mesh sizes, intercepted impurities and applicable working conditions by three filter shapes.
Shape & Application Analysis

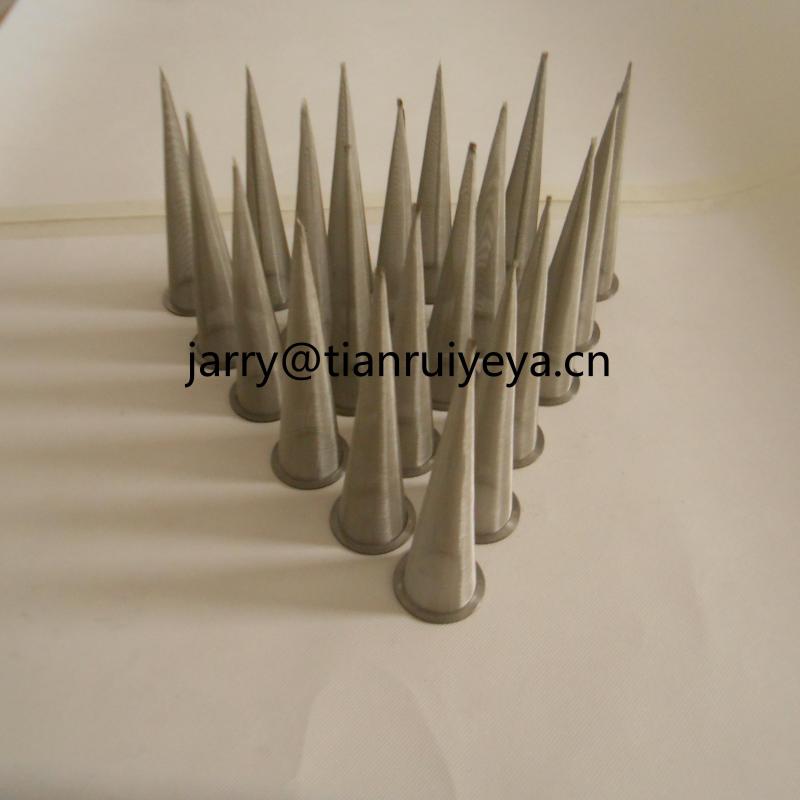

(1) Conical Stainless Steel Filter
Also known as funnel-shaped filters, conical filters are mainstream for pump inlet and equipment pre-filtration. Made of 304/316L stainless steel, they are pressure-resistant, durable and reusable. They cover both coarse and fine mesh sizes; coarse mesh is for high-flow equipment protection, while fine mesh is for low-flow precise filtration.
Core Advantages & Applications
The conical structure provides large filtration area and uniform fluid scouring; impurities slide down naturally with strong dirt-holding capacity and anti-clogging performance. Mainly used for hydraulic equipment oil suction filtration, water pump inlet filtration, chemical fluid feeding filtration and storage tank bottom protection.
(2) Semicircular Stainless Steel Filter
Semicircular arc filters are special-shaped auxiliary filtration accessories, designed for side installation on water tanks and tanks. They mainly adopt coarse mesh with no high-pressure flow demand, focusing on impurity blocking, flow guiding and anti-winding instead of precise filtration.
Core Advantages & Applications
The arc structure fits special-shaped cavities with stable installation and no deformation, without affecting fluid flow speed. Widely used for machine tool tank scrap blocking, mixing equipment anti-winding, overflow port filtration and non-standard equipment dust & impurity blocking.
(3) Cylindrical Stainless Steel Filter
Cylindrical filters have the strongest universality and cover low, medium and high full mesh sizes. Compatible with all kinds of standard filters and pipeline equipment, they are applicable to pre-coarse filtration and medium precise filtration across all industries.
Core Advantages & Applications
Regular structure, strong pressure resistance and universal installation, with customizable full specifications and reusable performance. Widely used in industrial water circulation, oil and gas filtration, food and chemical fluid filtration, and pneumatic equipment dust protection.
General Core Advantages
1. Durable Material
Made of 304/316L stainless steel, high-temperature resistant, acid and alkali resistant, rust-proof and deformation-proof, suitable for various harsh working conditions.
2. Reusable & Cost-Effective
The mesh structure is not easy to scale and clog, reusable after high-pressure washing and ultrasonic cleaning, reducing enterprise consumable costs.
3. Equipment Protection
Intercept hard impurities in advance to avoid pump jamming, nozzle clogging, valve wear and pipeline blockage, reducing maintenance frequency.
4. Highly Customizable
Customizable size, mesh number and thickening process according to equipment cavity, flow rate and interface requirements.
Quick Selection Guide
Conclusion
Conical, semicircular and cylindrical stainless steel filters are core basic accessories of industrial filtration systems. Reasonable matching of shape and mesh size can effectively protect production equipment, stabilize processes and reduce operation costs.
Our company specializes in the customized production of various stainless steel filter elements, with complete conical, semicircular and cylindrical products. We support non-standard size, special mesh and thickening customization with optional 304/316L materials. Our products are well-crafted, pressure-resistant, durable and reusable. Sample support, customized service and fast delivery are available.
