Introduction
A stainless steel wedge wire filter element is a reusable industrial filtration component widely used in water treatment, hydraulic systems, chemical processing, marine applications, and self-cleaning filtration equipment.
Unlike conventional pleated filter cartridges, wedge wire filter elements are constructed from precision-welded stainless steel profile wires, creating uniform slot openings that provide excellent filtration efficiency while maintaining high mechanical strength.
Because of their durability and cleanable design, wedge wire filter cartridges have become a preferred solution for industries requiring continuous operation and low maintenance costs.
What Is a Wedge Wire Filter Element?

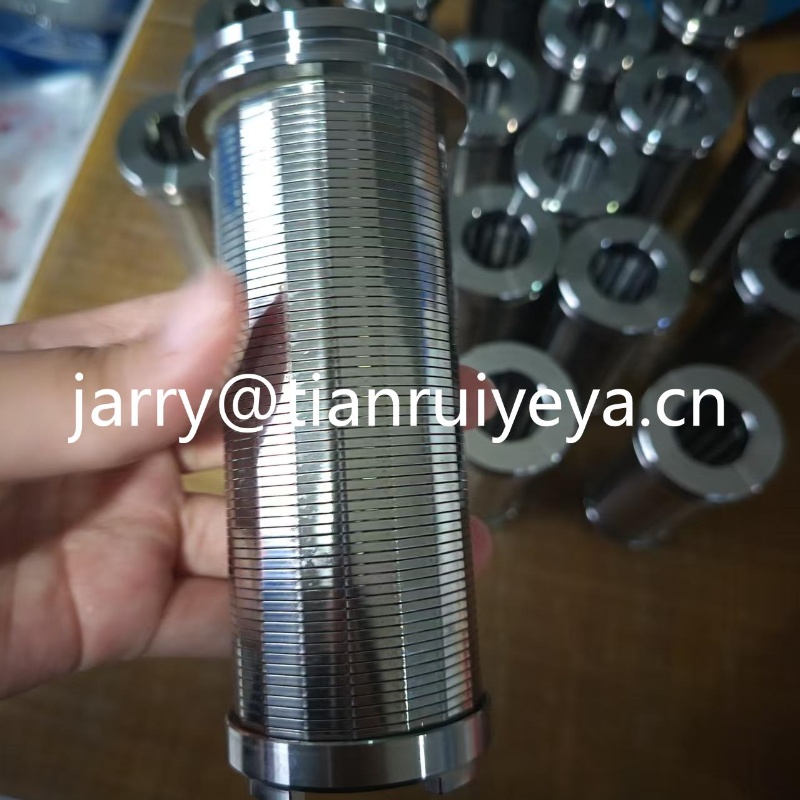

A wedge wire filter element consists of V-shaped stainless steel wires welded onto support rods to form a cylindrical filtration surface.
The unique wedge-shaped profile creates narrow filtration slots that effectively retain particles while minimizing clogging.
Key features include:
- Stainless steel 304 or 316L construction
- High pressure resistance
- Uniform slot opening
- Excellent corrosion resistance
- Reusable and washable design
- Long service life
The wedge-shaped openings allow contaminants to remain on the surface rather than becoming trapped deep inside the filter media, making cleaning much easier.
How Does a Wedge Wire Filter Cartridge Work?
Most wedge wire filter cartridges operate in an outside-to-inside flow direction.
The contaminated fluid passes through the wedge wire screen while solid particles are retained on the outer surface. Clean fluid then flows into the inner core and exits through the outlet.
This design offers:
- Low pressure drop
- High dirt holding capacity
- Easy backwashing
- Continuous filtration performance
For self-cleaning filtration systems, accumulated particles can be removed automatically through backwashing or scraper cleaning mechanisms.
Main Applications of Stainless Steel Wedge Wire Filters
1. Water Treatment Systems
Wedge wire filter cartridges are widely used in:
- Industrial water filtration
- Cooling water systems
- Desalination plants
- RO pre-filtration systems
- Municipal water treatment
Their smooth surface reduces fouling and improves backwash efficiency.
2. Hydraulic and Lubrication Systems
Industrial hydraulic equipment often requires coarse filtration to protect pumps and valves.
Applications include:
- Hydraulic oil filtration
- Lubrication oil systems
- Steel mills
- Mining equipment
- Power plants
3. Chemical and Petrochemical Industry
Due to their excellent chemical resistance, wedge wire filters are commonly used for:
- Catalyst recovery
- Polymer filtration
- Resin separation
- Process liquid filtration
4. Marine and Offshore Applications
Many marine filtration systems utilize stainless steel wedge wire elements because they can withstand:
- Saltwater corrosion
- High flow rates
- Continuous operation
5. Self-Cleaning Filter Systems
Automatic self-cleaning filters often incorporate wedge wire filter cartridges because of their ability to tolerate frequent backwashing without damage.
Advantages of Wedge Wire Filter Elements
Longer Service Life
Unlike disposable filter cartridges, stainless steel wedge wire filters can be cleaned and reused multiple times.
High Mechanical Strength
The welded stainless steel structure provides excellent resistance to pressure fluctuations and mechanical stress.
Lower Maintenance Costs
Because the filter can be reused, operating costs are significantly reduced.
Excellent Backwash Performance
The V-shaped slot design prevents deep clogging and allows efficient cleaning.
Corrosion Resistance
Available in SS304 and SS316L materials for demanding industrial environments.
Common Filtration Ratings
Typical slot sizes include:
- 25 micron
- 50 micron
- 75 micron
- 100 micron
- 150 micron
- 200 micron
- 500 micron
The appropriate filtration rating depends on the process requirements and contaminant size.
How to Select the Right Wedge Wire Filter Cartridge
When choosing a wedge wire filter element, consider:
- Filtration accuracy
- Flow rate
- Operating pressure
- Temperature requirements
- Material selection (304 or 316L)
- End cap connection type
- Cleaning method
Providing accurate dimensions and operating conditions helps ensure the best filtration performance.
Conclusion
Stainless steel wedge wire filter elements provide a reliable and cost-effective solution for industrial filtration applications. Their reusable construction, high strength, corrosion resistance, and superior backwash performance make them ideal for water treatment, hydraulic systems, petrochemical processes, and self-cleaning filtration equipment.
As an experienced manufacturer of replacement filter elements and custom filtration solutions, Xinxiang Tianrui Hydraulic Equipment Co., Ltd. supplies high-quality stainless steel wedge wire filter cartridges designed to meet various industrial requirements worldwide
