306608 Replacement Eaton Return Filter Element

Short Description:

We manufacture Replacement Internormen Hydraulic Filter Element. The filter media we used for Return Filter Element 01.NR 1000.25G.10.B.P, 306608 is stainless steel mesh, filtration accuracy is 25 micron. The pleated filter media ensure high dirt-holding capacity. Our replacement filter element 01.NR 1000.25G.10.B.P, 306608 can meet OEM specifications in Form, Fit, and Function.


  • Filter rating: 25 micron
  • Filter material: stainless steel
  • Length: 400 mm
  • Type: return line filter element
  • Model: 01.NR1000.25G.10.B.P.
  • Product Detail

    Product Tags

    Product Description

    The Internormen oil filter cartridge 01.NR 1000.25G.10.B.P is a filter component used in the hydraulic system. Its main function is to filter the oil in the hydraulic system, remove solid particles, impurities and pollutants, ensure that the oil in the hydraulic system is clean, and protect the normal operation of the system.

    Advantages of filter element

    a. Improve the performance of the hydraulic system: By effectively filtering impurities and particles in the oil, it can prevent problems such as blockage and jamming in the hydraulic system, and improve the work efficiency and stability of the system.

    b. Extending system life: Effective oil filtration can reduce wear and corrosion of components in hydraulic systems, extend system service life, and reduce maintenance and replacement costs.

    c. Protection of key components: Key components in the hydraulic system, such as pumps, valves, cylinders, etc., have high requirements for oil cleanliness. The hydraulic oil filter can reduce wear and damage to these components and protect their normal operation.

    d. Easy to maintain and replace: The hydraulic oil filter element can usually be replaced regularly as needed, and the replacement process is simple and convenient, without the need for large-scale modifications to the hydraulic system.

    Technical Data

    Model Number 01.NR 1000.25G.10.B.P, 300608
    Filter Type Return Filter Element
    Filter Layer material Stainless Steel Mesh
    Filtration accuracy 25 microns
    End caps material Plastic
    Inner Core material Carbon Steel

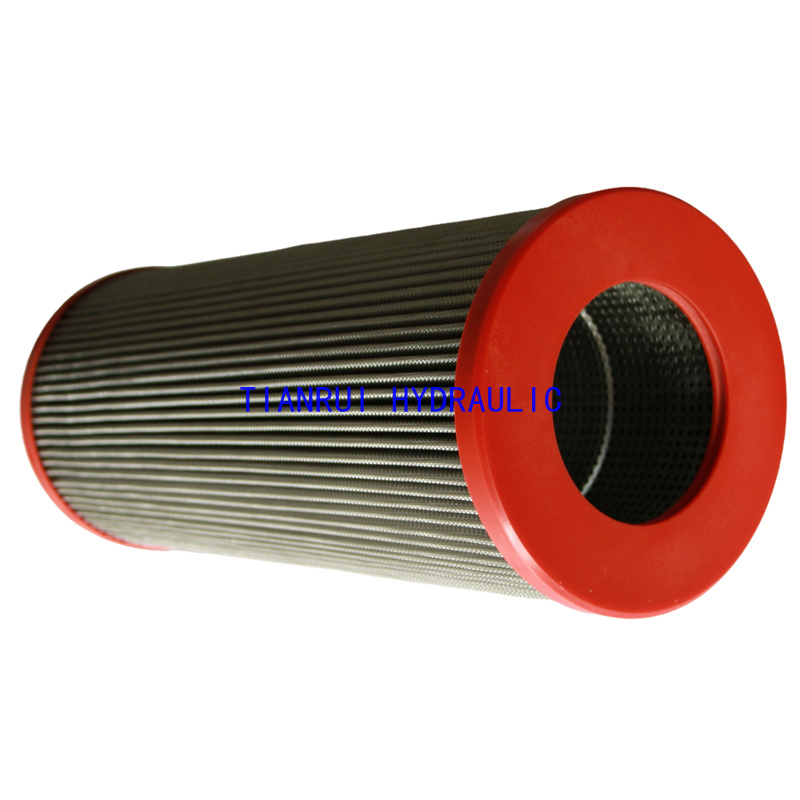

    Filter Pictures

    INTERNORMEN HYDRAULIC RETURN FILTER
    25 MICRON STAINLESS STEEL FILTER
    306608 (3)

    Related Models

    300255 300307 300404 300462 300527 300651
    300256 300308 300405 300463 300528 300652
    300257 300310 300406 300464 300529 300653
    300258 300311 300408 300466 300531 300655
    300259 300312 300409 300468 300532 300657
    300261 300313 300411 300469 300533 300658
    300263 300314 300412 300472 300534 300659
