PHA 42 Mpa High Pressure Hydraulic Filter Housing

PHA 42 Mpa High Pressure Hydraulic Filter Housing Featured Image
  • PHA 42 Mpa High Pressure Hydraulic Filter Housing
  • PHA 42 Mpa High Pressure Hydraulic Filter Housing
  • PHA 42 Mpa High Pressure Hydraulic Filter Housing

Short Description:

Custom NPT threaded connection high-pressure pipeline filter, G threaded pressure pipeline filterIt is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.


  • Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)
  • Operating pressure (max): 42MPa
  • Operating temperature: - 25℃~110℃
  • Indicating pressure drop: 0. 5MPa
  • By-pass valve unlocking pressure: 0.6MPa

    • Product Detail

    Product Tags

    description

    Aluminum alloy filter

    Its configuration and connect form convenient for other hydraulic pressure element integration assemblage.
    Differential pressure indicator and by-pass valve can be assembled according to actual requirement.
    Filter element adopts many kinds of materials, such as inorganic fiber, resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.
    Filter vessel is made of steel-stick, and has nice looking figure.

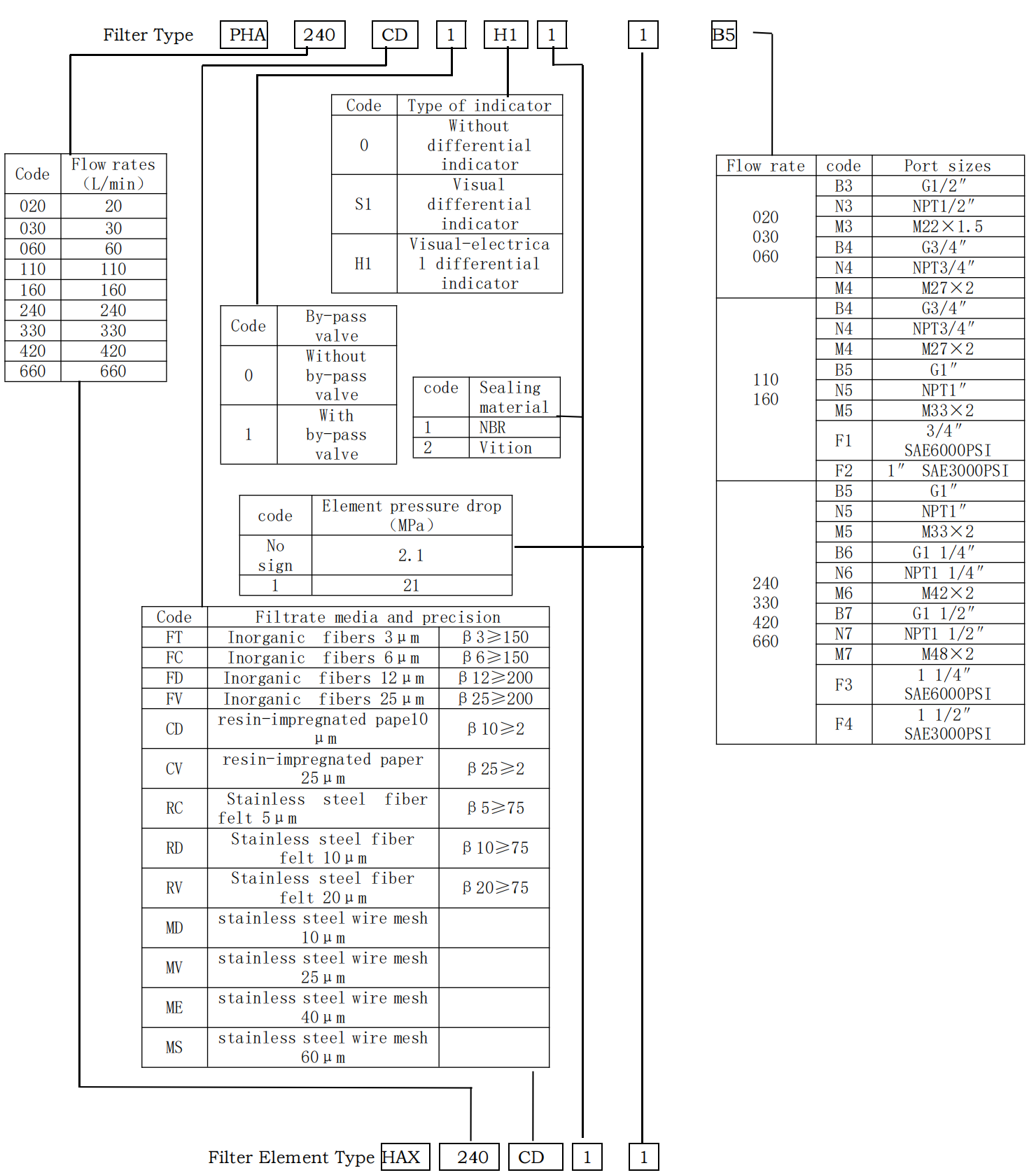

    Odering Information

    1) CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES（UNIT：1×105Pa Medium parameters：30cst 0.86kg/dm3）

    Type
    PHA/B/C/D    		 Housing Filter element
    FT FC FD FV CD CV RC RD MD MV
    020… 0.16 0.83 0.68 0.52 0.41 0.51 0.39 0.53 0.49 0.63 0.48
    030… 0.26 0.85 0.67 0.52 0.41 0.51 0.39 0.52 0.49 0.63 0.48
    060… 0.79 0.88 0.68 0.54 0.41 0.51 0.39 0.53 0.49 0.63 0.48
    110… 0.30 0.92 0.67 0.51 0.40 0.50 0.38 0.53 0.50 0.64 0.49
    160… 0.72 0.90 0.69 0.52 0.41 0.51 0.39 0.52 0.48 0.62 0.47
    240… 0.30 0.86 0.68 0.52 0.40 0.50 0.38 0.52 0.49 0.63 0.48
    330… 0.60 0.86 0.68 0.53 0.41 0.51 0.39 0.53 0.49 0.63 0.48
    420… 0.83 0.87 0.67 0.52 0.41 0.51 0.39 0.53 0.50 0.64 0.49
    660… 1.56 0.92 0.69 0.54 0.40 0.52 0.40 0.53 0.50 0.64 0.49



    2) DIMENDIONAL LAYOUT

    p2
    Type A H L B G Weight(kg)
    020… G1/2  NPT1/2  M22×1.5
    G3/4  NPT3/4  M27×2    		 208 85 M8 100 4.4
    030… 238 4.6
    060… 338 5.2
    110… G3/4  NPT3/4  M27×2
    G1    NPT1    M33×2    		 269 107 M8 6.6
    160… 360 8.2
    240… G1    NPT1    M33×2
    G1″ NPT1″ M42×2
    G1″ NPT1″ M48×2    		 287 143 M10 11
    330… 379 13.9
    420… 499 18.4
    660… 600 22.1

    Size chart for inlet/outlet connection flange（for PHA110…~ PHA66)

    phas
    Type A P Q C T Max. pressure
    110…
    160…    		 F1 3/4” 50.8 23.8 M10 14 42MPa
    F2 1” 52.4 26.2 M10 14 21MPa
    240…
    330…
    420…
    660…    		 F3 1″ 66.7 31.8 M14 19 42MPa
    F4 1″ 70 35.7 M12 19 21MPa

    Product Images

    carbon steel pressure filter
    stainless steel pressure filter housing PHA
