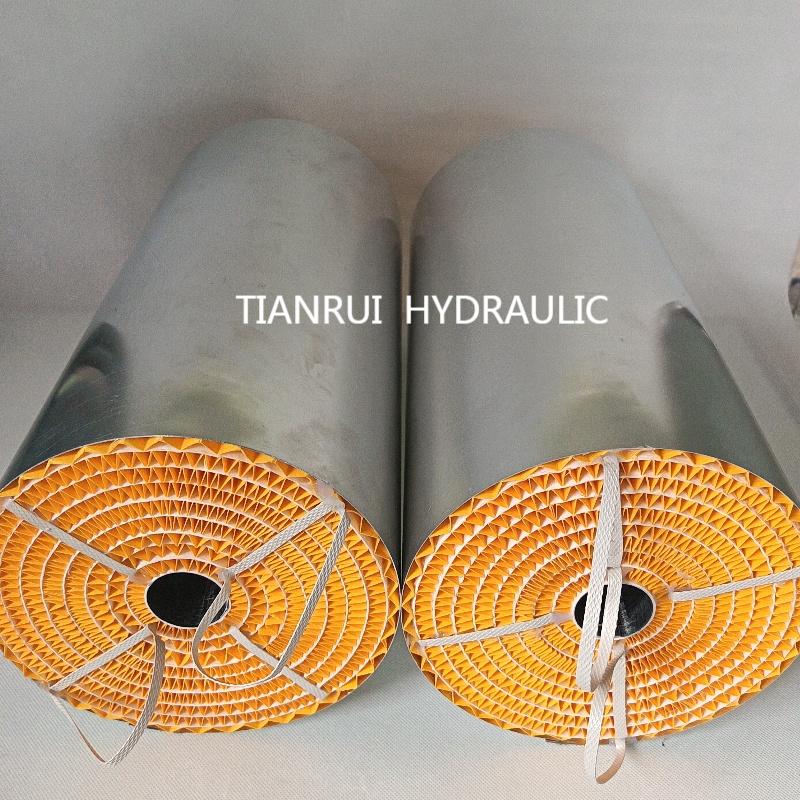

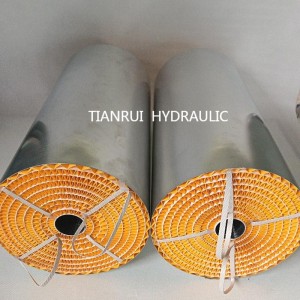

CC-R25SP Replacement ELC-R25SP Oil Cleaner Filter Element-TR FILTER

Short Description:

The CC-R25SP filter element is suitable for electrostatic oil purifiers. It uses static electricity to remove all contaminants insoluble in liquids, achieving efficient oil purification and protecting the cleanliness of hydraulic oil systems or lubricating oil systems, etc. Customization is supported by customers.

Place of origin: china xinxiang OEM filter factory

Advantage: support customer customization

Filter material: paper

Type: pleated paper oil filter element

Send email to us

Product Detail

Product Tags

Product Description

The working principle of the filter element is to use electrodes to capture contaminants in the oil. The contaminant particles dispersed and suspended in the oil can be classified into positively charged, negatively charged and neutral particles according to their different charges. Positively and negatively charged particles can be attracted to opposite electrodes (electrophoresis phenomenon). In a non-uniform electric field, uncharged (neutral) particles move through polarization. This is due to the special pleated filter element collector of the filter element, which changes the internal electric field, intensifies part of the electric field, and enables neutral particles that were originally not moving to be attracted and move towards that area (the phenomenon of dielectrophoresis).

We offer a wide range of filtration products, alternative filtration products, and support customization. For more details, please contact us

Technical Data

Model Number	CC-R25SP
Filter Type	oil Filter cartridge
Filter material	paper
Type	pleated filter cartridge

Our alternative products can be used in KLEENTEK oil purifiers, such as ELC-3SP, ELC-R10SP, ELC-R25SP, ELC-R50SP, and RLC-100SP

related model:CC-R3SP CC-R10SP CC-R25SP CC-R50SP CC-R100SP

Why need a filter element

a. Improve the performance of the hydraulic system: By effectively filtering impurities and particles in the oil, it can prevent problems such as blockage and jamming in the hydraulic system, and improve the work efficiency and stability of the system.

b. Extending system life: Effective oil filtration can reduce wear and corrosion of components in hydraulic systems, extend system service life, and reduce maintenance and replacement costs.

c. Protection of key components: Key components in the hydraulic system, such as pumps, valves, cylinders, etc., have high requirements for oil cleanliness. The hydraulic oil filter can reduce wear and damage to these components and protect their normal operation.

d. Easy to maintain and replace: The hydraulic oil filter element can usually be replaced regularly as needed, and the replacement process is simple and convenient, without the need for large-scale modifications to the hydraulic system.
