RYL Stainless Steel High Flow Fuel Filter Unit

Short Description:

Operating pressure: 0-1.6 MPa Operating temperature:-55℃–125℃
Operating medium: Fuel,RP-1、RP-2、RP-3
Filtrate precision: 1-100μm
Alarm pressure of differential pressure: 0.35±0.05 MPa
Filtrate media: Special stainless steel mesh, Stainless steel fiber felt, Inorganic fibers.


Product Detail

Product Tags

description

RYL filters are mainly used in the fuel supply system of aviation system testers and engine test benches to filter out solid particles and colloidal substances in the fuel, effectively controlling the cleanliness of the working medium.
RYL-16, RYL-22, and RYL-32 can be directly used in hydraulic systems.

RYL big (3)
RYL big (4)

Selection instructions

a. Filtering Materials and Precision: Within this series of products, you'll find three distinct filtering material options. Type I employs a specialized stainless steel mesh with filtering precision ranging from 5 to 100 microns, including intervals like 8, 16, 20, 25, 30, 40, 50, 80, and 100 microns. Type II utilizes a stainless steel fiber sintered felt, providing filtration accuracy at 5, 10, 20, 25, 40, and 60 microns, among others. Lastly, Type III features a composite filter material made of glass fiber, offering filtration precision at 1, 3, 5, and 10 microns, and so forth.

b. In scenarios where the working medium's temperature and the filter material's fuel temperature exceed or equal 60 ℃, it is advisable to employ either stainless steel special mesh or stainless steel fiber sintered felt for the filter material. Additionally, the filter element should be completely welded using stainless steel. When the fuel temperature surpasses 100 ℃, it is imperative to provide specific instructions during the selection process.

c. When choosing pressure difference alarm and bypass valve filters, opting for a pressure difference alarm is recommended. It is advisable to use a visual pressure difference alarm with set alarm pressures of 0.1MPa, 0.2MPa, and 0.35MPa. Both on-site visual alarms and remote telecommunication alarms should be employed. In cases where there is a high demand for flow rate, consider installing a bypass valve. This ensures uninterrupted fuel supply within the fuel system, even when the filter becomes obstructed and triggers an alarm.

d. When selecting oil drain valves for models above RYL-50, it is advisable to contemplate the inclusion of an oil drain valve. The standard oil drain valve is a manual switch known as RSF-2. For models below RYL-50, oil drain valves are generally not included. However, in special circumstances, their inclusion can be considered based on specific requirements, which may include screw plugs or manual switches.

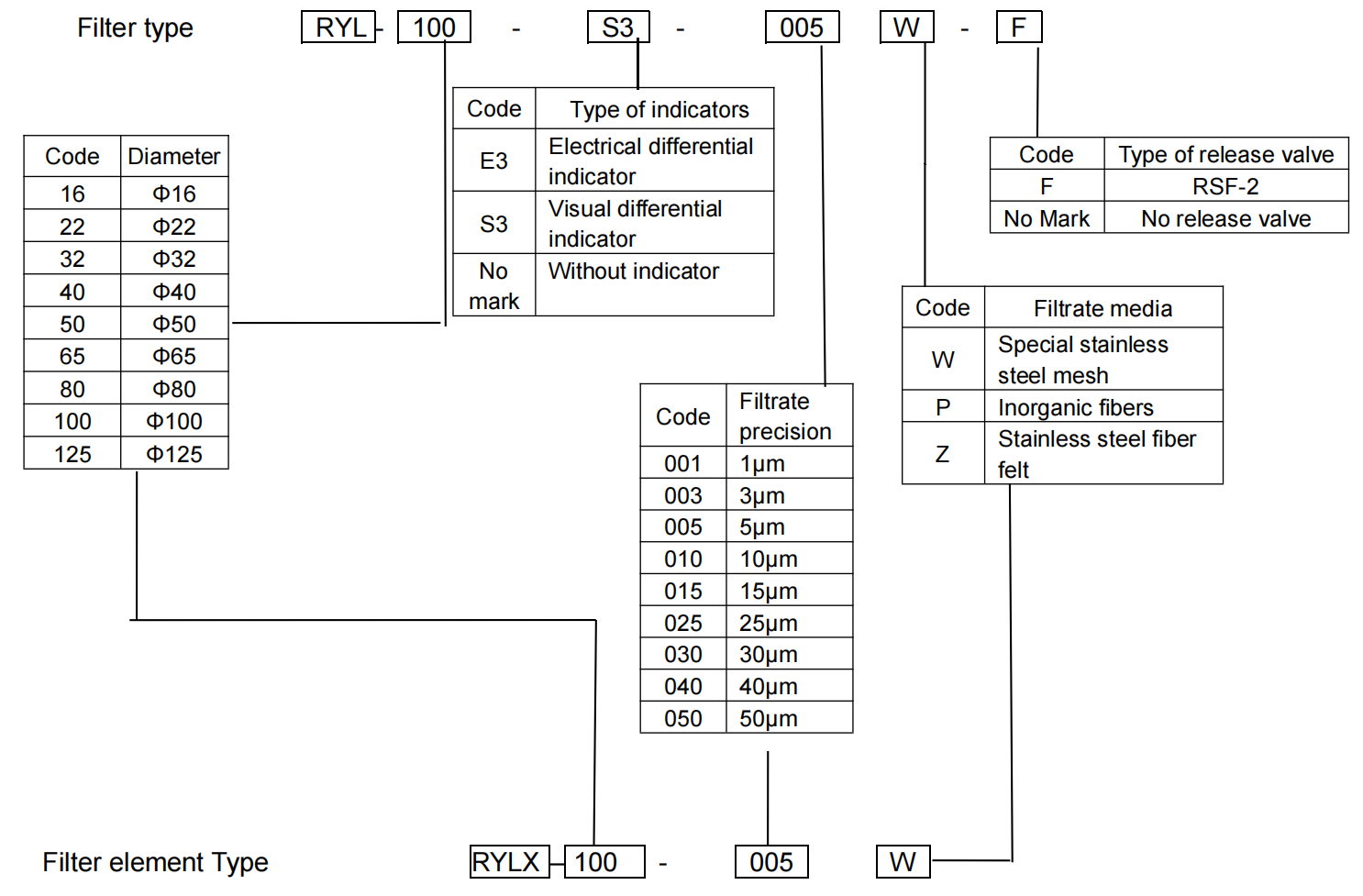

Odering Information

DIMENSIONAL LAYOUT

Type
RYL/RYLA
Flow rates
L/min
Diameter
d
H H0 L E Screw thread:MFlange size A×B×C×D Structure Notes
16 100 Φ16 283 252 208 Φ102 M27×1.5 Picture 1 Can be selected from the signal device, bypass valve and release valve according to request
22 150 Φ22 288 257 208 Φ116 M33×2
32 200 Φ30 288 257 208 Φ116 M45×2
40 400 Φ40 342 267 220 Φ116 Φ90×Φ110×Φ150×(4-Φ18)
50 600 Φ50 512 429 234 Φ130 Φ102×Φ125×Φ165×(4-Φ18) Picture 2
65 800 Φ65 576 484 287 Φ170 Φ118×Φ145×Φ185×(4-Φ18)
80 1200 Φ80 597 487 394 Φ250 Φ138×Φ160×Φ200×(8-Φ18)
100 1800 Φ100 587 477 394 Φ260 Φ158×Φ180×Φ220×(8-Φ18)
125 2300 Φ125 627 487 394 Φ273 Φ188×Φ210×Φ250×(8-Φ18)
p2
