Safety Protection System:
Equipped with a differential pressure indicator and a bypass valve to ensure reliable operation of the hydraulic system. When the filter element is clogged by contaminants, or the system temperature is too low, or flow pulsation causes the inlet pressure to reach 0.35 MPa, the indicator will trigger an alarm, prompting immediate replacement of the filter element or temperature adjustment. If the system cannot be shut down immediately, the bypass valve (set to open at 0.4 MPa) will automatically activate to maintain system circulation.
Filter Element Specifications:
The filter element is constructed with glass fiber media, offering high filtration precision, large flow capacity, minimal initial pressure drop, and exceptional dirt-holding capacity. Filtration accuracy is calibrated to absolute ratings, with β3、5、10＞100 and filtration efficiency η≥99%, fully compliant with ISO standards.
Model:
|
Model Number |
Flowrate L/min |
Filtration accuracy(μm) |
Dia(mm) |
Weight(Kg) |
Filter Cartridge Model Number |
|
RF-60×* L-C/Y |
60 |
1
|
20 |
0.4 |
TD0600R*BN/HC |
| RF-110×* L-C/Y |
110 |
0.9 |
TD0110R*BN/HC | ||
| RF-160×* L-C/Y |
160 |
40 |
1.1 |
TD0160R*BN/HC | |
| RF-240×* L-C/Y |
240 |
1.8 |
TD0240R*BN/HC | ||
| RF-330×* L-C/Y |
330 |
50 |
2.3 |
TD0330R*BN/HC | |
| RF-500×* L-C/Y |
500 |
3.2 |
TD0500R*BN/HC | ||
| RF-660×* L-C/Y |
660 |
80 |
4.1 |
TD0660R*BN/HC | |
| RF-850×* L-C/Y |
850 |
13 |
TD0850R*BN/HC | ||
| RF-950×* L-C/Y |
950 |
90 |
20 |
TD0950R*BN/HC | |
| RF-1300×* L-C/Y |
1300 |
100 |
41.5 |
TD1300R*BN/HC | |
| Note: If the medium used is water-ethylene glycol, the nominal flow rate is 160 L/min, the filtration accuracy is 10 μm, and it is equipped with a CYB-Ⅰ signal transmitter, the filter model shall be RF·BH-160x10L-Y, and the filter element model shall be TD0160R*BN/HC. Here, * represents the filtration accuracy: if the filtration accuracy is 3 μm, it should be written as 003; if it is 10 μm, it should be written as 010. | |||||
Model Numbers
RF-60×3L-C RF-60×5L-C RF-60×10L-C
RF-60×20L-C RF-60×30L-C
RF-60×3L-Y RF-60×5L-Y RF-60×10L-Y
RF-60×20L-Y RF-60×30L-Y
RF-110×3L-C RF-110×5L-C RF-110×10L-C
RF-110×20L-C RF-110×30L-C
RF-110×3L-Y RF-110×5L-Y RF-110×10L-Y
RF-110×20L-Y RF-110×30L-Y
RF-160×3L-C RF-160×5L-C RF-160×10L-C
RF-160×20L-C RF-160×30L-C
RF-160×3L-Y RF-160×5L-Y RF-160×10L-Y
RF-160×20L-Y RF-160×30L-Y
RF-240×3L-C RF-240×5L-C RF-240×10L-C
RF-240×20L-C RF-240×30L-C
RF-240×3L-Y RF-240×5L-Y RF-240×10L-Y
RF-240×20L-Y RF-240×30L-Y
RF-330×3F-C RF-330×5F-C RF-330×10F-C
RF-330×20F-C RF-330×30F-C
RF-330×3F-Y RF-330×5F-Y RF-330×10F-Y
RF-330×20F-Y RF-330×30F-Y
RF-500×3F-C RF-500×5F-C RF-500×10F-C
RF-500×20F-C RF-500×30F-C
RF-500×3F-Y RF-500×5F-Y RF-500×10F-Y
RF-500×20F-Y RF-500×30F-Y
RF-660×3F-C RF-660×5F-C RF-660×10F-C
RF-660×20F-C RF-660×30F-C
RF-660×3F-Y RF-660×5F-Y RF-660×10F-Y
RF-660×20F-Y RF-660×30F-Y
RF-850×3F-C RF-850×5F-C RF-850×10F-C
RF-850×20F-C RF-850×30F-C
RF-850×3F-Y RF-850×5F-Y RF-850×10F-Y
RF-850×20F-Y RF-850×30F-Y
RF-950×3F-C RF-950×5F-C RF-950×10F-C
RF-950×20F-C RF-950×30F-C
RF-950×3F-Y RF-950×5F-Y RF-950×10F-Y
RF-950×20F-Y RF-950×30F-Y
RF-1300×3F-C RF-1300×5F-C RF-1300×10F-C
RF-1300×20F-C RF-1300×30F-C
RF-1300×3F-Y RF-1300×5F-Y RF-1300×10F-Y
RF-1300×20F-Y RF-1300×30F-Y
RF.BH-60×3L-C RF.BH-60×5L-C RF.BH-60×10L-C
RF.BH-60×20L-C RF.BH-60×30L-C
RF.BH-60×3L-Y RF.BH-60×5L-Y RF.BH-60×10L-Y
RF.BH-60×20L-Y RF.BH-60×30L-Y
RF.BH-110×3L-C RF.BH-110×5L-C RF.BH-110×10L-C
RF.BH-110×20L-C RF.BH-110×30L-C
RF.BH-110×3L-Y RF.BH-110×5L-Y RF.BH-110×10L-Y
RF.BH-110×20L-Y RF.BH-110×30L-Y
RF.BH-160×3L-C RF.BH-160×5L-C RF.BH-160×10L-C
RF.BH-160×20L-C RF.BH-160×30L-C
RF.BH-160×3L-Y RF.BH-160×5L-Y RF.BH-160×10L-Y
RF.BH-160×20L-Y RF.BH-160×30L-Y
RF.BH-240×3L-C RF.BH-240×5L-C RF.BH-240×10L-C
RF.BH-240×20L-C RF.BH-240×30L-C
RF.BH-240×3L-Y RF.BH-240×5L-Y RF.BH-240×10L-Y
RF.BH-240×20L-Y RF.BH-240×30L-Y
RF.BH-330×3F-C RF.BH-330×5F-C RF.BH-330×10F-C
RF.BH-330×20F-C RF.BH-330×30F-C
RF.BH-330×3F-Y RF.BH-330×5F-Y RF.BH-330×10F-Y
RF.BH-330×20F-Y RF.BH-330×30F-Y
RF.BH-500×3F-C RF.BH-500×5F-C RF.BH-500×10F-C
RF.BH-500×20F-C RF.BH-500×30F-C
RF.BH-500×3F-Y RF.BH-500×5F-Y RF.BH-500×10F-Y
RF.BH-500×20F-Y RF.BH-500×30F-Y
RF.BH-660×3F-C RF.BH-660×5F-C RF.BH-660×10F-C
RF.BH-660×20F-C RF.BH-660×30F-C
RF.BH-660×3F-Y RF.BH-660×5F-Y RF.BH-660×10F-Y
RF.BH-660×20F-Y RF.BH-660×30F-Y
RF.BH-850×3F-C RF.BH-850×5F-C RF.BH-850×10F-C
RF.BH-850×20F-C RF.BH-850×30F-C
RF.BH-850×3F-Y RF.BH-850×5F-Y RF.BH-850×10F-Y
RF.BH-850×20F-Y RF.BH-850×30F-Y
RF.BH-950×3F-C RF.BH-950×5F-C RF.BH-950×10F-C
RF.BH-950×20F-C RF.BH-950×30F-C
RF.BH-950×3F-Y RF.BH-950×5F-Y RF.BH-950×10F-Y
RF.BH-950×20F-Y RF.BH-950×30F-Y
RF.BH-1300×3F-C RF.BH-1300×5F-C RF.BH-1300×10F-C
RF.BH-1300×20F-C RF.BH-1300×30F-C
RF.BH-1300×3F-Y RF.BH-1300×5F-Y RF.BH-1300×10F-Y
RF.BH-1300×20F-Y RF.BH-1300×30F-Y

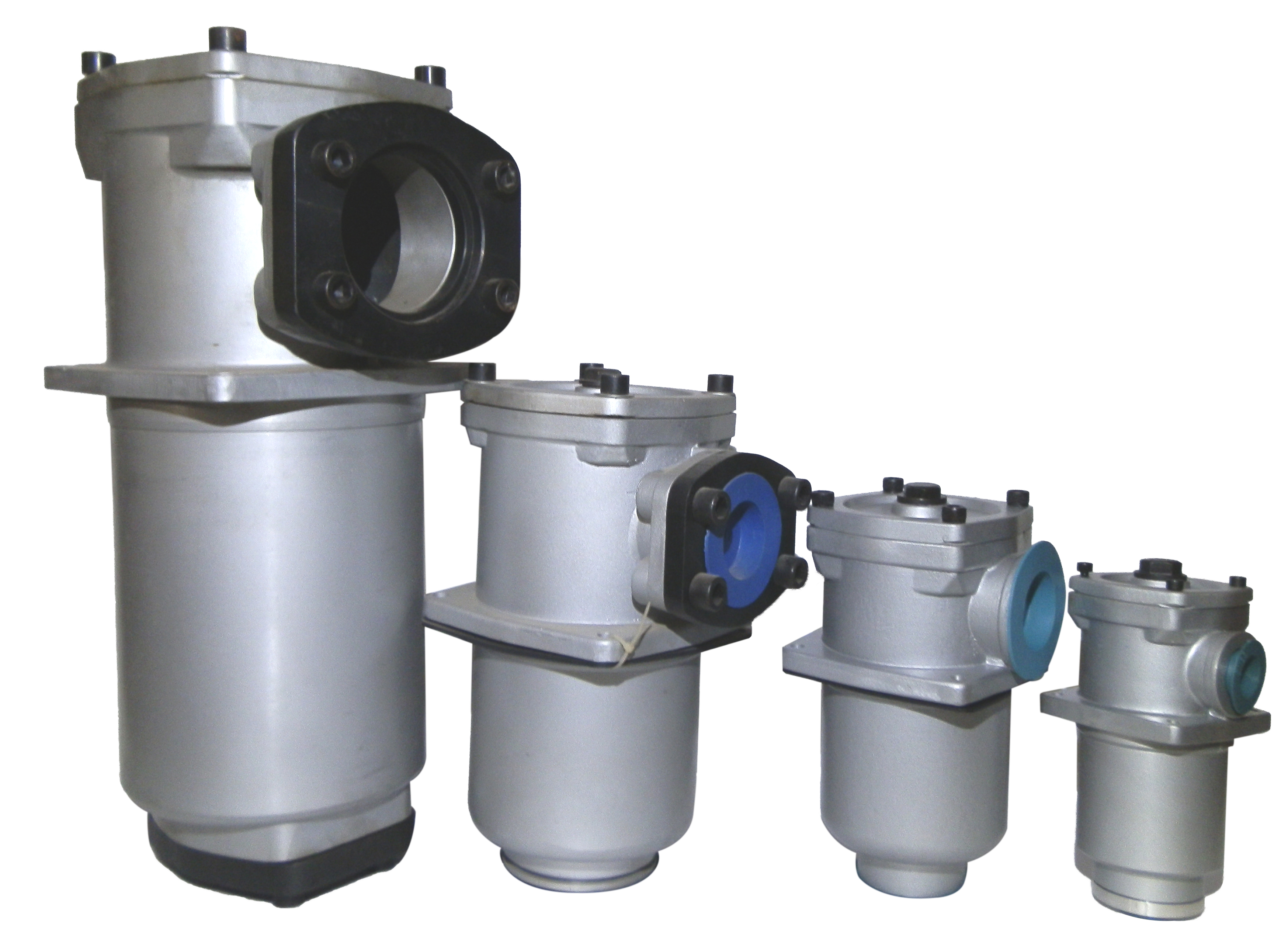

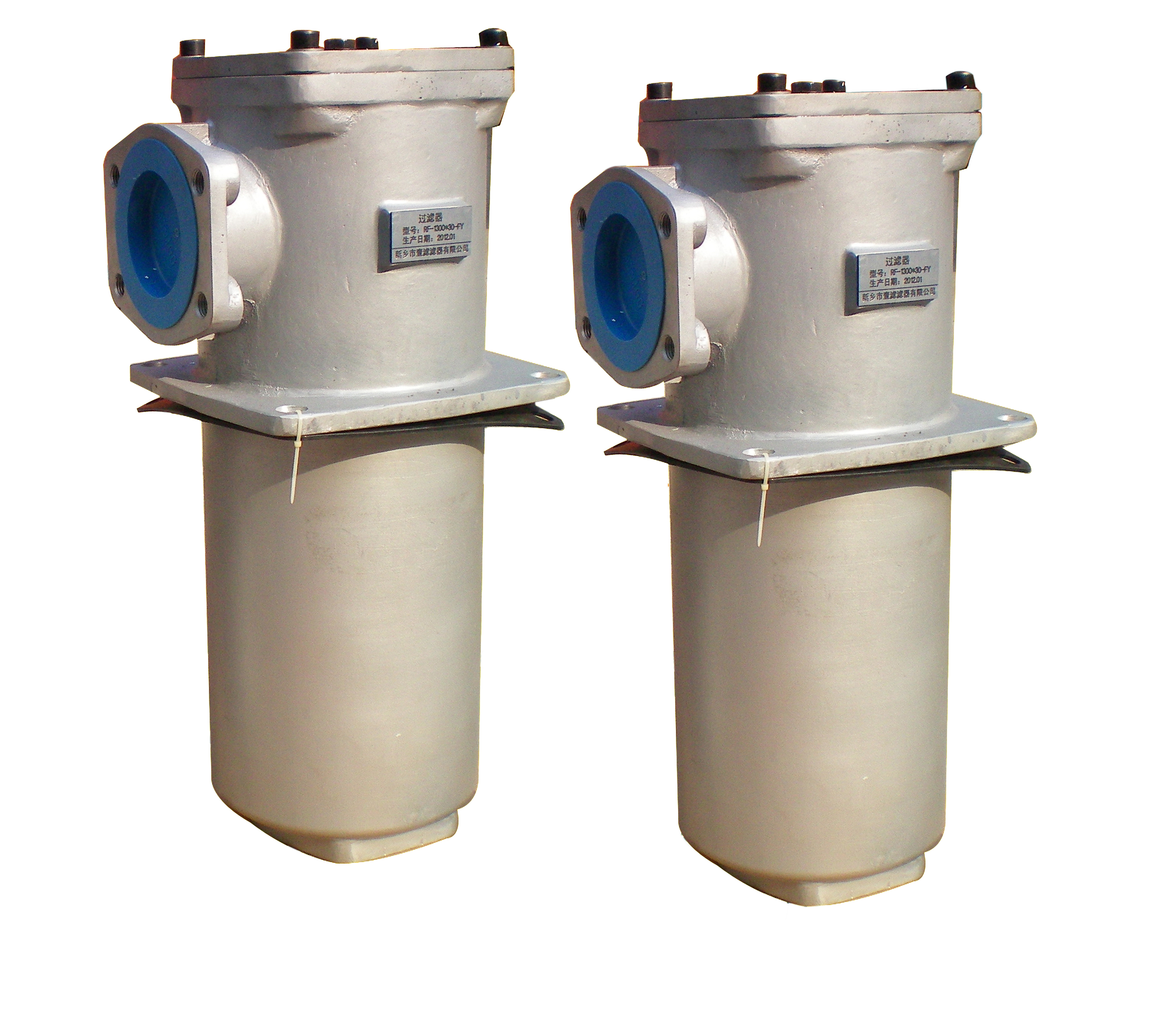

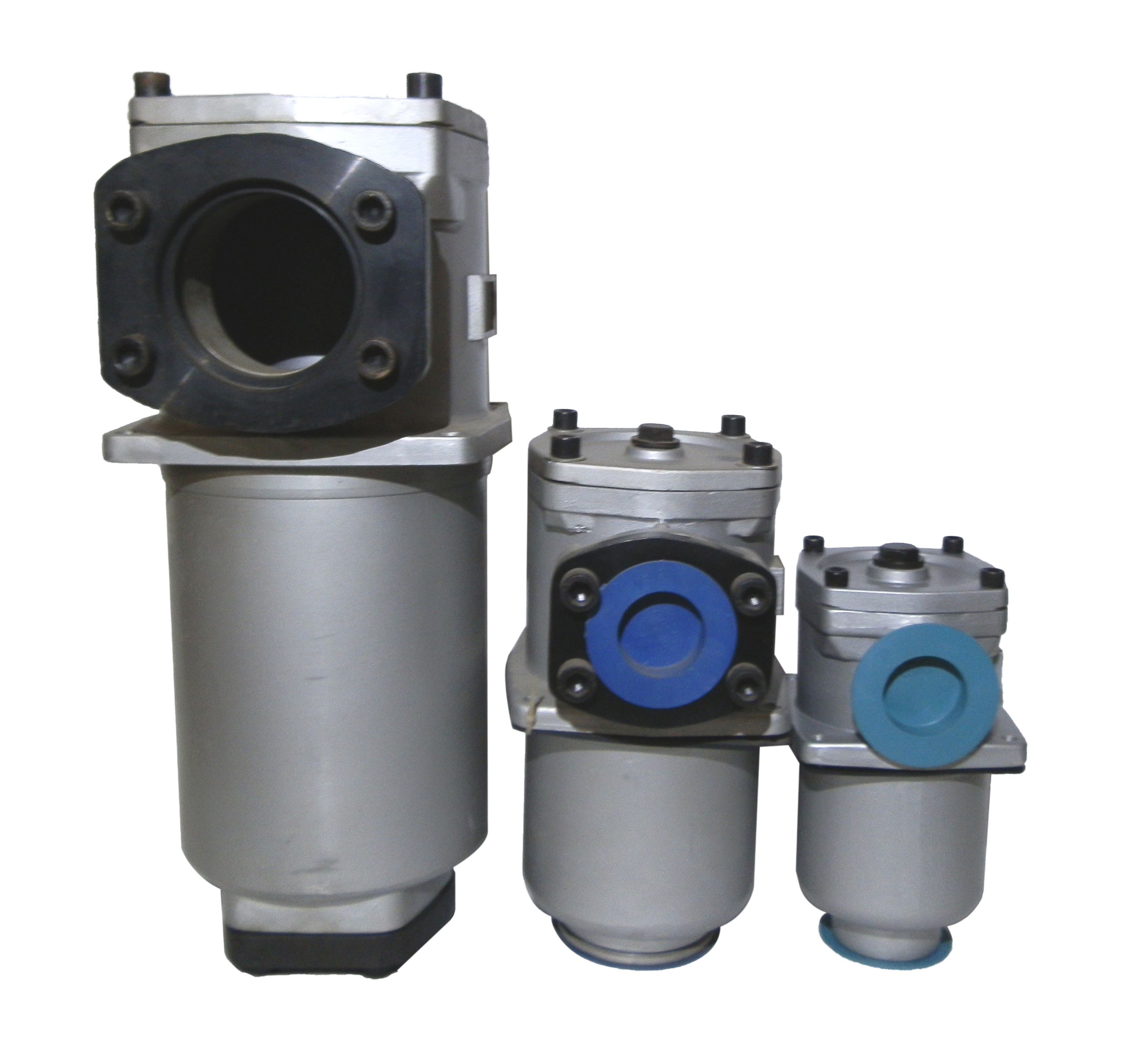

Product Images
