210Bar Aluminum alloy Pressure Filter Hydraulic Filter Housing YPM060FD2B4

Short Description:

Tianrui Hydraulic produces 21MPa YPM pipeline hydraulic filters. The shell material is aluminum alloy, which is lightweight and exquisite with threaded connection ports. Customized production can be carried out according to customer requirements

Filter rating: 10 micron

Flow: 60 L/min

Connection size: G3/4"

filter element material: fiberglass

Suitable for filter element: 060MFD1

Housing material: Aluminum alloy

Operating pressure (max): 21MPa

Suitable for filter housing: YPM060

By-pass valve unlocking pressure: 0.6MPa

Indicating pressure drop: 0. 5MPa

Operating temperature: - 25℃~110℃

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Weight: 1.5 KG

Packaging size: 16*16*25CM

Send email to us

Product Detail

Product Tags

description

YPM pressure pipeline filter is installed in the hydraulic system pressure pipeline to filter out solid particles and colloidal substances in the working medium, effectively controlling the pollution level of the working medium.

Differential pressure indicator and bypass valve can be assembled as required

The filter element can be made of composite glass fiber, stainless steel wire mesh, filter paper and stainless steel sintered felt.

The upper and lower shells are made of aluminum alloy. It has the advantages of small size, light weight, exquisite structure, and beautiful appearance.

Model Number	YPM 060 FD 2 B4
YPM	Working Pressure: 21 Mpa
060	Flow rate:60 L/MIN
FD	12 micron Glass Fiber Filter Cartridge
2	Seal material: VITON
B4	G3/4

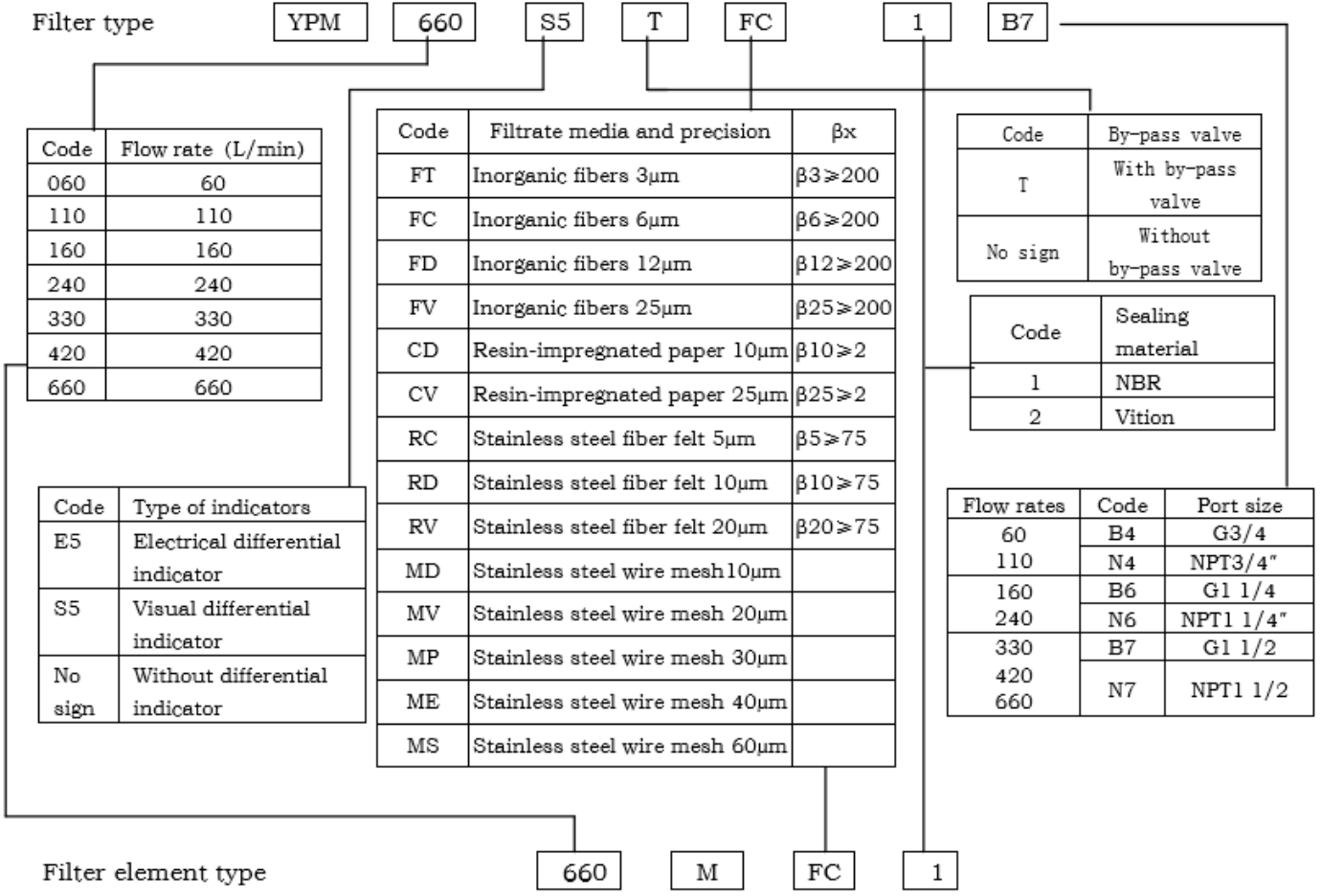

Odering Information

1) FILTER ELEMENT COLLAPSE PRESSURE UNDER RTING FLOW RATES（Unit：1×105Pa
Medium parameters：30cst 0.86Kg/dm3）

Type	Housing	Filter element
Type	Housing	FT	FC	FD	FV	CD	CV	RC	RD	MD	MV
YPM060…	0.49	0.88	0.68	0.54	0.43	0.51	0.39	0.56	0.48	0.62	0.46
YPM110…	1.13	0.85	0.69	0.53	0.42	0.50	0.38	0.52	0.49	0.63	0.47
YPM160…	0.52	0.87	0.68	0.55	0.42	0.50	0.38	0.56	0.48	0.62	0.46
YPM240…	1.38	0.88	0.68	0.53	0.42	0.50	0.38	0.53	0.50	0.63	0.46
YPM330…	0.48	0.87	0.70	0.55	0.41	0.50	0.38	0.52	0.49	0.63	0.47
YPM420…	0.95	0.86	0.70	0.54	0.43	0.51	0.39	0.56	0.48	0.64	0.48
YPM660…	1.49	0.88	0.72	0.53	0.42	0.50	0.38	0.52	0.49	0.63	0.47

2) DIMENSIONAL LAYOUT

Type	A	H	H1	H2	L	L1	L2	B	D	G	P	T	C	Weight（Kg）
YPM060…	G3/4 NPT3/4	198	168	137	110	84	25	Φ8.5	Φ68	100	34	14	M8	1.3
YPM110…		268	238	207										2.1
YPM160…	G1″ NPT1″	254	224	184	128	107	33	Φ8.5	Φ85	100	43	16	M10	2.9
YPM240…		314	284	244										4.1
YPM330…	G1″ NPT1″	315	285	241	162	134	42	Φ10.5	Φ110	100	52	16	M12	5.8
YPM420…		395	365	321										11.3
YPM660…		497	467	423										18.6
