High Pressure Line Filter PHF110-063W Stainless Steel Hydraulic Filter Housing

PHF series pressure line filters are installed in pressure pipelines of lubricating and hydraulic system

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester

Operating pressure (max): 31.5 MPa

Operating temperature: – 25℃~110℃

Indicating pressure drop: 0. 5MPa

By-pass valve unlocking pressure: 0.6MPa

Product Detail

It is installed in pressure pipelines of lubricating and hydraulic system;

Different filter material can be chosen according to actual requirement;

Filter housing adopts stainless steel or carbon steel

Different indicator can be assembled according to actual requirement.

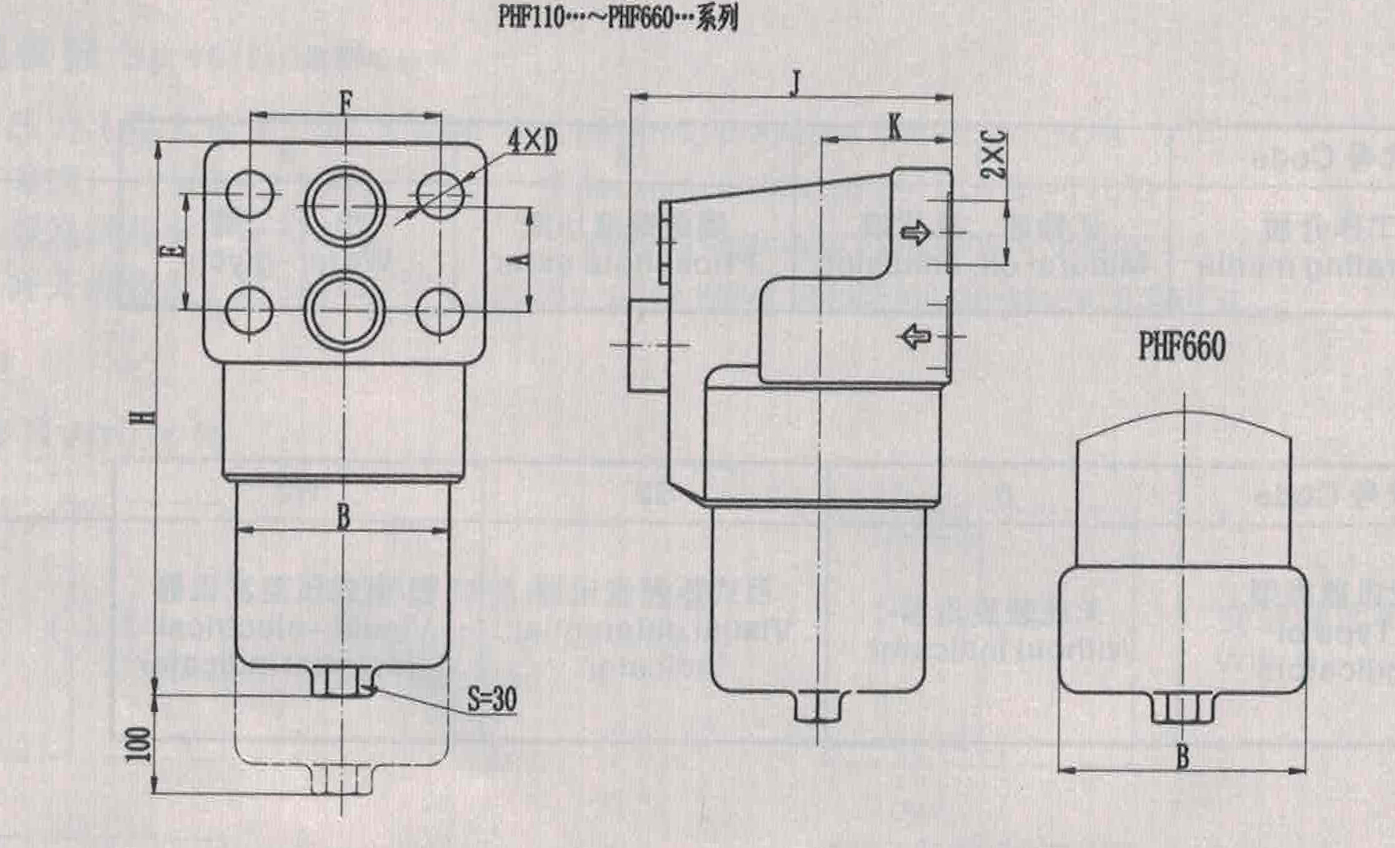

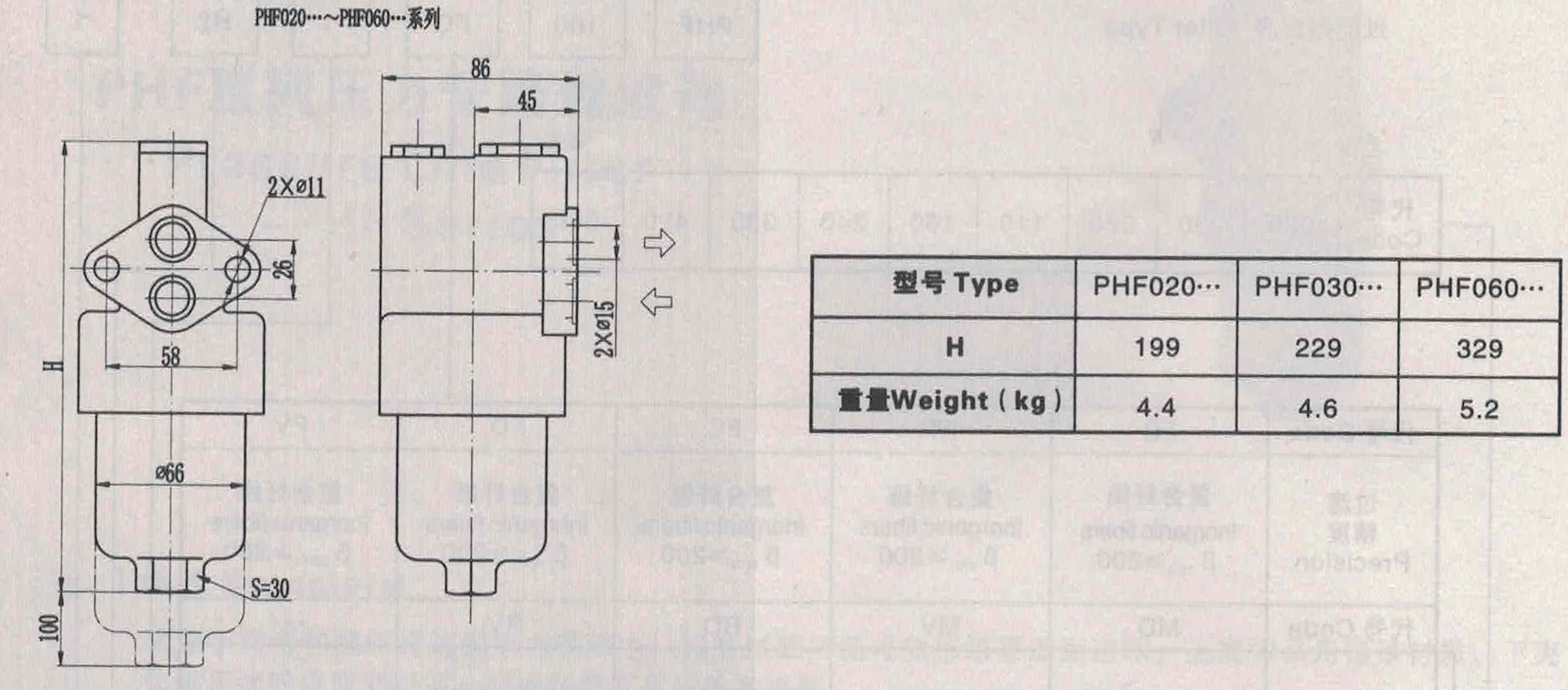

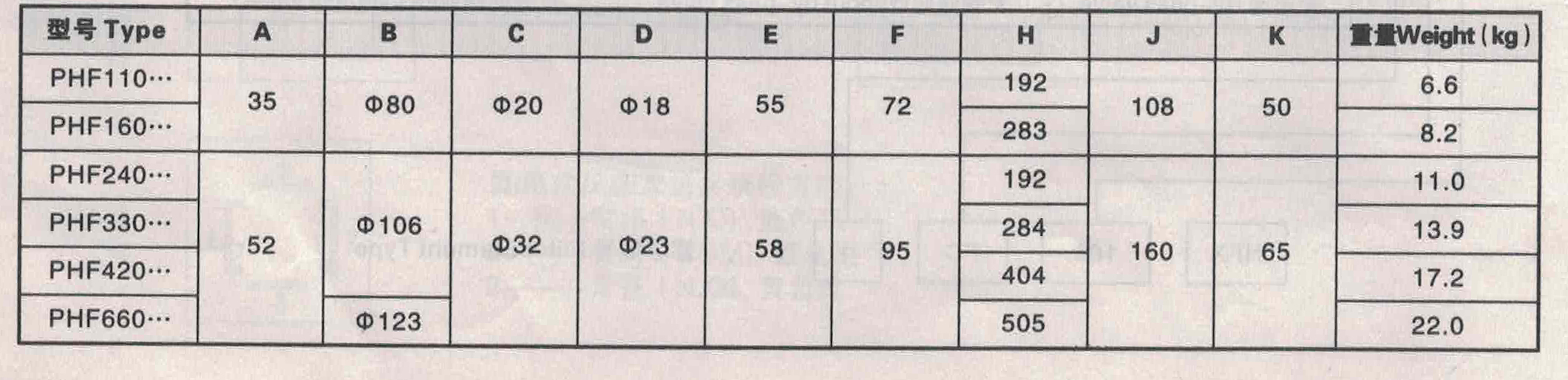

2) DRAWINGS AND DIMENSIONS
